Antenna GSM Multi Band

Glass aerial with dual-sided adhesive tape for GSM-applications 900/1800 MHz
5 m cable with male SMA.
Technical specifications:
Length: 116 mm
Antenna connection: SMA/M
Base frequency : 900 MHz/1800 MHz/1900 MHz/2170 MHz
Amplification: 2 dBi
Mounting: Tape

Internal Planar Antenna GSM900/1800 and UMTS, AMPS.
Cable length 3 m
Antenna connection
FME/F

Magnetic antenna for 3G UMTS 2100mhz band 120cm with cable 4m and SMA Connector

Portable, with magnetic base + antenna set.
Magnetic omnidirectional antenna with a very high efficiency for all telephony systems GPRS / EDGE / UMTS and HSDPA working at 850MHZ -2170 MHz band. It has a unique signal gain among the antennas on the market. It effectively solves the problem of low coverage. Equipped with an integrated cable with a length of 5 meters, completed a universal connector for Huawei modems. Very well suited wherever you need mobile solutions. The antenna has 11 dBi gain amplification, which allows most of the time to obtain a stable GPRS / EDGE. In addition, the antenna is provided which is suitable for magnetic foot antenna on the car roof or metal window sill or on a balcony railing. Antenna type: two-mode magnetic antenna suitable for GSM modems and gateways, and other uses Frequency: 850-960 MHz 1710-2170 Resistance: Nom. 50 Ohm Polarization: Linear / Vertical Gain: 11 dBi VSWR:

This 5 dBi omnidirectional 4G LTE antenna is designed as a compact and efficient solution to improve the stability and quality of the cellular network signal. Thanks to its 360° design, the antenna receives signals from all directions. It is equipped with a standard SMA connector. This 5 dBi omnidirectional 4G LTE antenna is designed to improve the quality and stability of the cellular signal. Its 360° omnidirectional design allows the antenna to receive signals from all directions—ideal for locations where the base station is hidden from view or where the direction of signal reflection changes. Its wide operating range, 600-2700MHz, covers the most important LTE bands used in Europe, including B28, B20, B3, B1 and B7, ensuring high compatibility with fixed routers, industrial routers and IoT devices. This 4G LTE antenna is designed to improve the quality of your internet connection at home, in the office and in any other room with internet access. It increases transmission stability, improves download and upload speeds and positively affects the overall performance of the internet. The IP67 rating, combined with resistance to various weather conditions, ensures stable connections even in difficult weather conditions. Our solution offers: • 4G LTE support – transmission speeds up to 600 Mbps, • wide frequency range 600-2700 MHz, • SMA connector – wide compatibility with routers and mobile devices, • modern design – thanks to the use of high-quality materials and attention to detail. The antenna is equipped with a magnetic base that allows quick and stable installation on metal surfaces, such as the roof or body of the vehicle. A strong magnet ensures a secure hold even while driving, minimizing the risk of the antenna shifting or falling. This solution eliminates the need for drilling or additional tools, and the antenna can be easily removed and moved at any time. Reliable, guaranteed Product covered by a 24-month warranty Is high quality important to you? Our solutions will meet your expectations. Our 4G LTE antenna is covered by a 24-month warranty from the date of purchase.

External magnetic base antenna GSM Dual Band for lot use like FCT, Mobile phones and car kit

Εξωτερική κεραία αυτοκόλλητη τζαμιού 20cm

The LTE is an omnidirectional antenna specifically designed for LTE frequencies. It is an excellent companion to our LTE devices, such as the wAP LTE and LtAP series. The antenna has a 5 dBi gain, improving your connection in the areas with inadequate LTE service coverage, allowing you to increase your connection speed.

Product specifications
Details
Product code MTAO-LTE-5D-SQ
Antenna gain 5
Beamwidth 360°
Connector 2 x SMA female
Diameter x Depth 129 x 129 x 34 mm
Frequency Range 699 - 2690 MHz
Operating Temperature -40°C .. +70°C tested - IP54

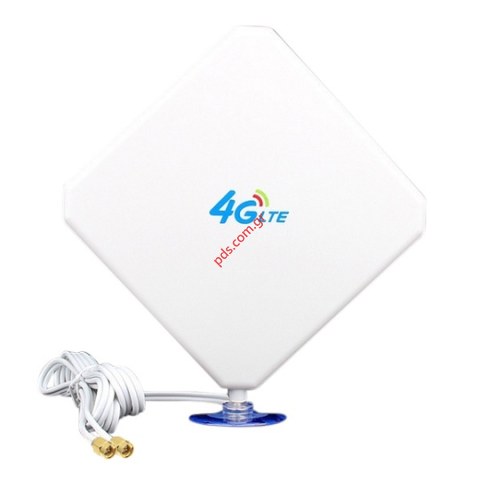

- Panel antenna
- Model YNX-4G-25dB-016
- Operating frequency: 600 -2700 MHz
- Works in the following technologies: 2G, 3G, 4G (1800 MHz, 2100 MHz, 2600 MHz)
- Antenna connector: 2xSMA
- Resistance: 50 ohms
- Polarization: vertical/horizontal
- Low-loss RG 174U cables, 2x 3 meters long
- Gain: 25dBi
- Dimensions: 14.5x14.5x2.5 cm

Strengthen your reach

Wireless Internet has revolutionized the 21st-century market. We use it on our laptops or TV sets. We watch movies, listen to music, communicate with family. Actually, the internet gives us unlimited possibilities. Only a few years ago we were struggling with low data transfer or watching movies that keep buffering. Technology has moved forward, but does this mean that these situations do not happen? We still struggle with interference preventing us from comfortable internet use. We have the perfect solution. 4G LTE DUAL antenna from Qoltec will clearly improve the quality of data transmission to your devices.
Quality & Design

The 4G LTE antenna has been created to improve the quality of the Internet at home, in the office and in every other place with Internet access. Our solution offers: - 4G LTE - provides signal speed up to 300 Mb / s, - double SMA connector - allows connection to devices using coaxial cables, - modern design - we use of high-class materials and pay attention to details.

Frequency 690 – 960/1710 – 2170/2400-2700MHz
V.S.W.R 2.2:1
Cable Optional - LMR 195 5M
Connector N (f)
Height 250mm

Antenna 4G LTE 30d 57014
Weight 0.390
Height 38.50
Width 7.50
Dimensions 340 x 65 x 75 mm
Color White
Polarizatio Linear vertical
Use Outside, Inside
Resistance 50
Antenna power 30
Antenna connector SMA
Housing material: Acrylonitrile Butadiene Styrene (ABS)

External Antenna GSM for modem stick HUAWEI 12,5dbi.
Antenna GSM for modem HUAWEI 3,5dbi (portable)
HUA E122/HUA E150/HUA E156/HUA E156G/HUA E159/HUA E160/HUA E160E/HUA E160G/HUA E169/HUA E173/HUA E176/HUA E176G/HUA E230/HUA E367/HUA E600/HUA E612/HUA E618/HUA E620/HUA E630/HUA E660A/HUA E1612/HUA E1762/HUA E1820/HUA E1821/HUA EC321/HUA UMG1691/HUA UMG181/ALC X221S/ZTE MF612 model CRC9

Producent: Qoltec
Antenna Coaxial power cable Adapter Mounting kit
Package depth/length [mm]: 90
Dimension [mm]: 45
High dimension [mm]: 520
Weight netto [kg]: 0.3140
Weight brutto [kg]: 0.5040
Warranty: 24 months
Power: 50W
Information

Materiał: Fiberglass, pure nickel-plated copper
Gain: 5.8 dBi
Freguency: 868 MHz
Impedancja: 50 Ω
Polarization : Vertical
Connectores 1 x N TYPE FEMALE / 1 x SMA MALE
VSWR: ≤ 2.0
Cable type : 3 m RG58
Temperatura pracy: -20°C ~ + 85℃
Waterproof class: IP 67
Kolor: Grey
Type anteny: Omnidirectional 360

Antenna for LTE routers, allowing to significantly increase the strength of the received signal. Supports 3G and 4G LTE frequencies. TS-9 plugs on a two-meter cable.

Model: GJ-ANT4G01
Plug: TS-9
Frequencies: 3G, 4G LTE (800-2700)
Type: MIMO
Profit: 88 DBi
Dimensions: 120 x 225mm
Cable length: 3m

manufacturer: Qoltec
Package Contents: 1 x 4G Antenna 1 x Mounting Accessories
Packaging depth/length [mm]: 70
Packaging width [mm]: 453
Package height [mm]: 72
Net weight [kg]: 0.536
Gross weight [kg]: 0.613
Warranty: 24 months
Cable length: ~ 3m
Tightness class: IP67
Dimensions (D x W x H): 321 x 65 x 65 mm
Power: 50W
Gain: 5 dBi
Operating frequency: 600 - 2700 MHz
Impedance: 50 Ω
Polarization: Horizontal
Antenna connector: SMA male
VSWR: ≤2.0
Power cable: RG-174
Operating temperature: -20˚C ~ +85˚C
White color
Material: Plastic + steel + copper
Antenna type: Omnidirectional

Description
This LTE antenna can be installed indoors or outdoors and
is suitable for all listed bands of LTE. The antenna is fully
compatible with GSM, UMTS, WLAN 2.4 GHz, ZigBee, Z-
Wave and Bluetooth.
Specification
• LTE Band: 1-10; 12-20; 23; 25-30; 33-41; 44
• Frequenzy range: 694 - 960 MHz, 1710 - 2700 Mhz
• GSM: 710/750/810/850/1800/1900
• P-GSM: 900
• R-GSM: 900
• T-GSM: 810/900
• UMTS: Band I-X/XII-XIV/XIX
• WLAN 2,4 GHz
• ZigBee
• Z-Wave
• Bluetooth
• Gain: 2 dBi
• Polarisation: linear vertical
• Impedanz: 50 Ohm
• VSWR:
2.0 max. @ 694~960 MHz/ 1710~2170 MHz
3.0 max. @ 2400~2700 MHz
• Dimension:
height: 48 mm
diameter: 50 mm
• Screw mounting 12 mm central hole
• Cable length: 3 m
• Cable type: RG-174
• Cable attenuation: ca. 1 dB/m @ 1 GHz
• Connector: SMA plug
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• IP 67
Package content
• LTE antenna
• Nut, washer

Antenna Cellular 4G LTE
Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.4:1, ~1.4:1, ~1.5:1
Efficiency (%) ~54.7, ~56.8, ~48.8
Peak Gain (dBi) ~2.2, ~3.0, ~0.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25w

Its omnidirectional design ensures stable signal reception from any direction. Equipped with an SMA connector and a 3-meter cable, it is ideal for outdoor installations that require improved signal quality. It is weatherproof with an IP67 rating and is compatible with routers, USB modems, and IoT devices. This 15 dBi 4G LTE omnidirectional antenna is designed to improve cellular signal quality and stability. Its 360° omnidirectional design allows the antenna to receive signals from any direction—ideal for locations where the base station is hidden from view or where the direction of signal reflection changes. Its wide operating range of 600-2700MHz covers the most important LTE bands used in Europe, including B28, B20, B3, B1 and B7, ensuring high compatibility with fixed routers, industrial routers and IoT devices. This 4G LTE antenna is designed to improve the quality of your internet connection at home, in the office and in any other room with internet access. It increases transmission stability, improves download and upload speeds and positively affects the overall performance of the internet. The IP67 waterproof rating, combined with resistance to various weather conditions, ensures a stable connection even in adverse weather conditions. Our solution offers: - 4G LTE support – transmission speeds up to 600 Mbps, - wide frequency range 600-2700 MHz, - fiberglass housing characterized by high durability and resistance to UV radiation, frost and rain, making the antenna ideal for long-term outdoor installation, - professional SMA connector – ensuring low signal loss and a secure, weather-resistant connection to the antenna cable, - modern design – thanks to the use of high-quality materials and attention to detail, - 3-meter cable terminated in an SMA MALE connector that allows easy installation of the antenna on corresponding routers.

Antenna 3G 4G LTE external MIMO antennna outdoor antenna with 3m Dual SlIder CRC9/TS9/SMA connector for 3G 4G router modem.

Product Features:
1.Compatible with 4G mobile broadband Modems router, simple installation, no software required.
2.Fits 4G modems with SMA male/TS9/CRC9 por
3.Compatible list :3G 4G Router modem
4.Usable indoor or outdoors Enhance and maintain excellent signal quality.
5.Frequency range : 698-960/1710-2700MHZ
6.VSWR: <2.5
7.Gain: 10-21dBi
8.Polarization Type: Vertical
9.Radiation : Omni
10.Max Power imput: 10W
11.Input Impedance: 50 Ohms
12.Connector Type : SMA,TS9,CRC9 or other
13.Cable Type: RG174(BEST)100% cooper
14.Cable Length: Approx.3M
15.Dimensions: Appox.23 X 6.5 X 6.5CM
16.Material: Metal+Plastic
17.Color: White
18.Installation Tips:
Antenna should be mounted vertically to maximize performance
Antenna should not be mounted against metal

A directional 5G antenna with 9 dBi gain operating in the 600-2700 MHz and 3300-3800 MHz bands. Equipped with a professional SMA connector and a 3m cable, it is ideal for outdoor installations requiring improved signal quality. Weather-resistant. Compatible with routers, USB modems, and IoT devices.

The 9dBi directional 5G antenna is designed to improve cellular signal quality and stability. Its directional radiation pattern allows the antenna to focus energy in a specific direction, allowing for precise targeting of the base station and significantly better connection parameters than omnidirectional antennas. The wide 600-2700MHz operating range covers the most important LTE bands used in Poland and Europe, including B28, B20, B3, B1, and B7, ensuring high compatibility with stationary and industrial routers, as well as IoT devices. The additional 3300-3800 MHz range enables operation in modern 5G NR (n77/n78) networks, offering higher throughput and improved transmission stability.

The 5G antenna was designed to improve internet connection quality at home, in the office, and in any other room with internet access. It increases transmission stability, improves download and upload speeds, and has a positive impact on overall internet performance. The IP67 rating , combined with resistance to various weather conditions, can ensure a stable connection even in harsh weather conditions.

Our solution offers:

- 5G standard support - transmission speed up to 600 Mb/s, - wide frequency range 600-2700 MHz and 3300-3800 MHz , - SMA connector - ensures compatibility with popular LTE devices: routers, mobile internet gateways, USB modems, - modern design - thanks to the use of high-quality materials and attention to detail, - 3-meter cable allowing for convenient antenna installation,



This 5G / 4G antenna is a product designed to meet your expectations for quality and data transfer speed. It ensures the highest performance standards thanks to precise manufacturing and the use of top-quality components. Wireless internet has revolutionized the 21st century market. We use it on our laptops and TVs. We watch movies, listen to music and communicate with loved ones. The possibilities that the internet offers us today are incomparable to those that were a few years ago. Low data transfer, inability to watch a movie without buffering. Technology has advanced, but does this mean that these situations do not happen? Unfortunately, no. We often encounter connection interruptions and interference that prevent us from surfing the internet freely, which is why we have the perfect solution for you. It is a 5G antenna from Qoltec, which will significantly improve the quality of data transfer to your devices. The Qoltec 5G antenna features innovative technology 5G waves at frequencies of 3300-3800 MHz and 4G waves at frequencies of 600-2700 MHz ensure extensive coverage and stable connection to the network regardless of the number of devices and users using the connection simultaneously. It was designed to improve the quality of the network at home, in the office, in the car and in any other room with Internet access. In addition, our device offers: - SMA connector – allows connection to devices using coaxial cables, - modern design – thanks to the use of high-quality materials and attention to detail, Reliability confirmed by a guarantee Do you value high-quality products? Our solutions will meet your expectations. Each of our 5G antennas is covered by a 24-month warranty from the date of purchase.

Frequency 790 - 960 MHz, 1700 - 2180 MHz
2400 - 2490 MHz, 2500 - 2700 MHz
V.S.W.R < 2.5:1 (790 - 960 MHz), < 2.0:1 (1700 - 2180 MHz / 2400 - 2490 MHz / 2500 - 2700 MHz)
Polarisation Vertical
Connector N f
Height 460mm

The omni directional antenna has been designed for use in UMTS systems, working in 690Mhz to 2.7 GHz band. It is a perfect tool for solving the frequent problem that our comfortable place is not the best one for using the laptop with UMTS, 3G, 4G, HSPA, LTE card or simply the UMTS mobile.

High quality antenna.

FEATURES

Wide frequency band 698-2700MHz
Low VSWR
Low passive intermodulation
Widely used in RF solutions

SPECIFICATIONS

Frequency Range (MHz.) ……………………………. 698-960 / 1710-2700 Mhz
Gain (dBi) ……………………………………………………………….. 2.5±1 / 5±1
Beam Width ……………………………………………………. Hor: 360° Ver: 65°±6°
Gain (dB) ………………………………………………………………………. >15 dB
VSWR ………………………………………………………………………......... <2.0
Polarization …………………………………………………………………….. Vertical
Power Rating (W)……………………………………………………...........…. 100 W
Impedance (Ω) …………………………………………………………………….. 50Ω
Lightning Protection ……………….........................................(masa) Direct Ground
Max Wind Velocity (m/s) …………………………………................……… 50 m/s
Connector……………………………………………………………..... N-type female
Dimensions D×H (mm) ……………………………………....………….. Ø 63×260
Weight (Kg) ……………………………………………………………………… 0.27
Radome Material ………………………………………………………………. PVC

Omnidirectional antenna for boosting your 3G/4G/LTE/GSM/5G/WiFi signal. Stronger signal will give you more internet speed and more reliable connection.
Omnidirectional antenna for boosting your 3G/4G/LTE/GSM/WiFi signal. Stronger signal will give you more internet speed and more reliable connection.
Mounting To wall / mast
Frequency 600-698, 698-824, 800-960, 1400-2170 2170-3200, 3200-6000
Maximum input power 50W
Dimensions Φ64×199mm
Impedance 50 Ohm
Polarisation Vertical
Cable 5m, 10m or customized
Operating temperature -45°C to +70°C

Indoor internal 3db Omni directional Ceiling Antenna For Cell phone Repeater Booster amplifier (900MHz-1800MHz-2100MHz)

Manufacturer: Qoltec
Package Contents: 5G 4G Antenna Mounting Kit
Packaging depth/length [mm]: 225
Packaging width [mm]: 58
Package height [mm]: 74
Net weight [kg]: 0.6830
Gross weight [kg]: 1.2940
Warranty: 24 months
Cable length: 3 m RG58
Tightness class: IP 67
Height: 210 mm
Dimensions (D/D x W x H): 60 x 210 x 510 mm
Additional information: Antenna for external mounting
Power: 50W
Gain: 14 dBi
Operating frequency: 600 - 2700 MHz / 3300 - 3800 MHz
Impedance: 50 Ω
Polarization: Vertical
Antenna connector: SMA male
VSWR: ≤ 3.0
Operating temperature: -20℃ ~ +85℃
White color
Material: ABS
Antenna type: External

Manufacturer: Qoltec
Package contents: 4G LTE antenna Mounting kit YAGI
Packaging depth/length [mm]: 210
Packaging width [mm]: 65
Packaging height [mm]: 445
Net weight [kg]: 0.5250
Gross weight [kg]: 0.7600
Warranty: 24 months
Cable length: 3 m RG58
Tightness class: IP 65
Additional information: Antenna for external mounting
Power: 50W
Gain: 18 dBi
Operating frequency: 600-2700 MHz
Impedance: 50 Ω
Polarization: Vertical
Antenna connector: SMA male
VSWR: ≤ 2.0
Operating temperature: -20℃ ~ +85℃
White color
Material: Copper + plastic
Antenna type: External

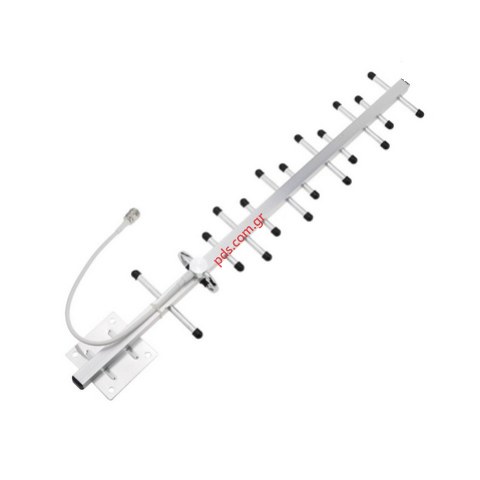

Yagi Directional Antenna 698-960/1710-2700 MHz is designed for outdoor wireless networks operating in the LTE, 4G, 5G and CBRS frequency ranges. The antenna is ideal for the most demanding, mission critical communications. Already deployed by the thousands in the U.S., this antenna has proven to be reliable in environments as diverse as remote oil fields, rural communication networks, and as building donor antennas in dense urban settings. It includes an adjustable mast mount for precise positioning.

Technical Specs
Gain dBi10 dBi, 11 dBi
Connector PlacementPigtail
Jumper IncludedYes
RF ConnectorsN Female
Maximum Power50 W
Gain dBd7.86 dBd, 8.86 dBd, 8.86 dBd
Horizontal Beamwidth65 deg, 50 deg
Vertical Beamwidth50 deg, 40 deg, 40 deg
Item Height1.5 in
ManufacturerVentev / TerraWave
Type of Hardware IncludedArticualting Mast Mount
PolarizationVertical
Item Weight2.2 lb
Qty/ Uom1 Each
Tuned Frequency (MHz)N/A
Item Width8.1 in
Type of Jumper Included12" Pigtail
Item Length17.4 in
Maximum VSWR1.8:1, 1.5:1, 1.5:1
Specific Frequency698-2700 MHz

FEATURES
Wide frequency band 698-2700MHz
Low VSWR
Low passive intermodulation
Widely used in RF solutions

SPECIFICATIONS
Frequency Range (MHz.)…..................…. 698-960 / 1710-2700 Mhz
Gain (dBi) …………………………………………………….. 2.5±1 / 5±1
Beam Width ………………………………………. Hor: 360° Ver: 65°±6°
Gain (dB) …………………………………………………………. >15 dB
VSWR ……………………….……………………………………….. <2.0
Polarization ……………………………………………………….. Vertical
Power Rating (W)…………………………………………………. 100 W
Impedance (Ω) ……………………………………………………….. 50Ω
Lightning Protection ………….. Directo a tierra (masa) Direct Ground
Max Wind Velocity (m/s) ………………………………………… 50 m/s
Connector……………………………………………N-hembra / N-female
Dimensions D×H (mm) ……………………………………….. Ø 63×260
Weight (Kg) ………………………………...………………………… 0.27
Radome Material ……………………………………………………. PVC

Electrical Specifications

Frequency range（MHz）


698-960 / 1710-2700

Bandwidth（MHz）


262 / 790

Gain（dBi）


3 / 5

Half-power beam width（°）


H:360 V:55

VSWR


≤2.0

Input Impedance（Ω）


50

Polarization


Vertical

Maximum input power（W）


100

Lightning protection


DC Ground

Cable length （cm）


30

Input connector type


N female or Requested

Mechanical Specifications

Dimensions (mm)


Φ60*230

Antenna weight（kg）


0.6

Cable length （cm）


30

Operating temperature（°c）


-40～60

Rated Wind Velocity（m/s）


60

Radome color


White

Mounting way


Pole-holding

Mounting hardware（mm）


￠35-￠50

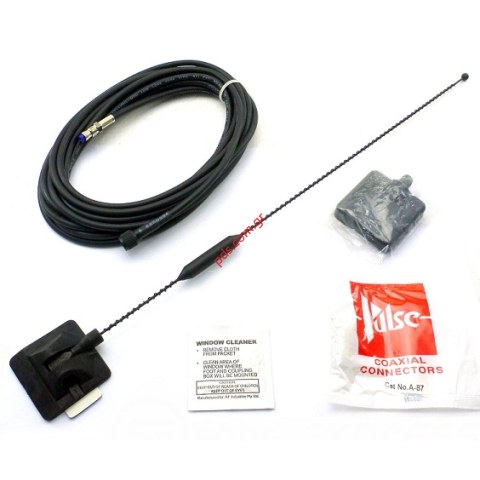

Antenna window for all GSM carkit, incuded GSM 900/1800 cable 5m.

Brand new and very high quality.
Frequency Range(MHz)850-960/1710-2170.
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
Radiation: Omni
Gain: 3dbi
Mounting: 3M tape
Housing: Black
Cable: 5M LL58

External antenna Υagi GSM 900MHZ 13Dbi

External antenna Υagi GSM 3G 2100MHZ 13Dbi (GSM)

FEATURES
Wide frequency band 698-2700MHz
Low VSWR
Low passive intermodulation
Widely used in RF solutions

SPECIFICATIONS
Frequency Range (MHz.)…..................…. 698-960 / 1710-2700 Mhz
Gain (dBi) …………………………………………………….. 2.5±1 / 5±1
Beam Width ………………………………………. Hor: 360° Ver: 65°±6°
Gain (dB) …………………………………………………………. >15 dB
VSWR ……………………….……………………………………….. <2.0
Polarization ……………………………………………………….. Vertical
Power Rating (W)…………………………………………………. 100 W
Impedance (Ω) ……………………………………………………….. 50Ω
Lightning Protection ………….. Directo a tierra (masa) Direct Ground
Max Wind Velocity (m/s) ………………………………………… 50 m/s
Connector……………………………………………N-hembra / N-female
Dimensions D×H (mm) ……………………………………….. Ø 63×260
Weight (Kg) ………………………………...………………………… 0.27
Radome Material ……………………………………………………. PVC

External antenna Υagi GSM 1800MHZ 13Dbi (Cosmote)

Marine type Antenna (10-12 dBi) 360° Omni directional.
Recommended for Boats and Ships suitable for all European mobile networks.
All bands covered : from 760, 800, 900, 1800, 2100, 2600, 2700 MHz.
Omnidirectional outdoor antenna with wall/ceiling fixing system.
Size: 33 x 6.5 cm.
(high x diameter) 20 cm cable terminated in N female connector to connect to a telephone repeater.
The omnidirectional antenna allows the capture of the GSM, 3G or 4G signal where there is coverage.
Operating frequency of 698-960/1710-2700MHz and 10-12 dBi.


Gross Weight: 408 g
Product size (width x depth x height): 6.5 x 7.0 x 33.0 cm
Number of packages: 1
Packages size: 36.3 x 7.0 x 7.0 cm
Master-pack: 1

Antenna set 5G / 4G / 3G / GSM with two 2.5m connection cables. Suitable for replacing the antenna of a 5G / 4G / 3G / GSM Modem / Router.

Antenna to enhance communication and increase data transfer speed via 5G / 4G / 3G and GSM signal, using quadruple frequency band. The antenna is equipped with two 2.5 meter cables, with negligible losses to ensure high quality signal reception. It can be placed indoors or outdoors for better signal reception.

Specifications:
- Allows receiving 5G signal with a single antenna
- Press: Mobile telephony
- Installation: Indoors + Exterior
- Frequency range: 698-5000 MHz
- Horizontal polarization: 360 °
- Vertical polarization: 60 °
- Gain: 6 dB
- Resistance: 50 Ohm
- Color: White
- Material: ABS
- Connection type: SMA-Male
- Cable length: 2.5 m
- IP X3 protection

Package Contents:
- 5G / 4G / 3G / GSM antenna
- Cable 2x 2.5 m
- Assembly materials
- Manual

Antenna type
outside
Antenna type
omnidirectional
Antenna gain
12 dBi
Working frequency
800 MHz
Working frequency
2100 MHz
Working frequency
1800 MHz
Working frequency
900 MHz
Working frequency
2600 MHz
Standard
4G
Standard
3G
Standard
2G

External antenna Yagi Multi Band GSM Triband (Vodafone, Cosmote, Wind, 3G).
Dimension Antenna : 40cm x 28cm x 5cm
Band Frequence: GSM 900MHz, GSM 1800MHz, UMTS 2100MHz 3G

Electrical Specifications

Frequency range（MHz）


806-960 / 1710-2700

Bandwidth（MHz）


154 / 990

Gain（dBi）


6 / 8

Half-power beam width（°）


H:360 V:25

VSWR


≤1.5

Input Impedance（Ω）


50

Polarization


Vertical

Maximum input power（W）


100

Lightning protection


DC Ground

Input connector type


N Female or Requested

Mechanical Specifications

Dimensions (mm)


Φ60*750

Antenna weight（kg）


1.5

Operating temperature（°c）


-40～60

Rated Wind Velocity（m/s）


60

Radome color


white

Mounting way


Pole-holding

Mounting hardware（mm）


￠35-￠50

The antenna are compact, omnidirectional outdoor antenna, wall or pole mounted tuned to 4G/3G/2G and WiFi frequencies. Its radome is UV proof and water proof so perfect for outdoor applications. They are fitted with low loss LMR195 cable to maximise signal strength. They feature an aluminium bracket for wall mounting and a clamp for mast fitting.

Polarisation: Vertical, Linear
Horizontal beam width: 360°
Vertical beam width: 55°
800 MHz to 960 MHz Gain: 3 dBi
1710 MHz to 2700 MHz Gain: 5.5 dBi
VSWR: ≤1.5
Max power: 20 W
Impedance: 50 Ω
Mechanical data:
Radome: PVC with UV protection
Radiator: Aluminium
Lightning protection: Direct ground
Size overall: 240 x 60 mm
Maximum wind loading when mounted: 180 km/hr

Frequency bands:
800 MHz to 960 MHz
1710 MHz to 2700 MHz
2G (GSM/GPRS), 3G (UTMS), 4G, 4G (LTE Cat-M), 4G (LTE), 5G (LTE), Bluetooth (BLE), ISM Band, LoRaWan, NB IoT, NB-IoT, WiFi, WiFi (Dual Band)

This omnidirectional Marine antenna for outdoor use has optimal technical properties for the frequency range of LTE and 4G.
The multiband LTE antenna made of fiberglass is very robust and can be easily attached anywhere with a suitable mounting plate and holder. It is therefore particularly suitable for mobile use outdoors. With a rod length of approx. 20 cm, it achieves a performance gain of up to 6 dBi, which increases the range of your application.

Optionally, you can get the right low-loss antenna cable according to your specifications, mounting material and bracket.

Multiband 4G (LTE) industrial antenna for outdoor use 690 ~ 960 MHz 1710 ~ 2170 MHz 2500 ~ 2690 MHz

Specification
Frequency Range 698-960 MHz
1710-2700MHz
Gain 4/6dBi
Connectors N Female
Horizontal Beamwidth 360
Vertical Beamwidth 18
Nominal Impedance 50 Ω
Tested ambient temperature -40°C to 70°C

Omnidirectional antenna for boosting your 3G/4G/LTE/GSM/WiFi signal. Stronger signal will give you more internet speed and more reliable connection.
Frequency Bands LTE 700MHz (most rural areas), All GSM/3G/4G/LTE frequencies 700-2600MHz (whole Finland), LTE 800MHz (rural area), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), LTE 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 3G 2100 MHz (urban area), 3G/4G Dual Carrier 2100 MHz (urban area), WLAN/WiFi 2.4GHz, LTE 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas)
Frequency range (MHz) 698-960, 1710-2700
Antenna amplification (dB) 7 (6 ± 1 dBi)
Amplifier (dB) N/A
Antenna position Indoor, Outdoor
Antenna direction Omnidirectional
Mast clamp (mm) 22-50
Wall mount included No
Product height (mm) 600
Product width (mm) 60
Product depth (mm) 60
Product weight (g) 1100

Outdoor antenna Special Omni compatible with the whole range of amplifiers GSM simatos.Proairetiki upgrade kit for places where you want to give more intensity to the signal that takes the signal amplifier.
The multiband design allows to cover wide range of frequencies from a single small antenna, supports all existing and future wireless applications, including 2G, 3G, 4G, 802.11g and 802.11b wireless networks.

The antenna is ideal for parking garages, for airports, shopping malls and other areas with difficult coverage.

The antenna will pick up signal from all directions and should be placed as high as possible for best results.

Poor internet coverage in the 4G LTE network from today will no longer be a problem. Extremely easy and trouble-free assembly. Energy gain 2x22dBi. 360 degree signal collection angle. Black colour.



3G / 4G LTE and HSPA + frequencies support, 2x5m SFR200 terminated with FMEż plugs, 2x SMA connector. Omni-directional horizontal polarization. Weatherproof Standard IPX6.




Antenna specification:

Model Antenna DUAL OMNI X-CROSS Omnidirectional 2G / 3G / 4G LTE 2x22dBi
Operating band: 791 ~ 821MHz / 832 ~ 862MHz / 900MHz
1710 ~ 1785MHz / 1805 ~ 1880MHz
2500 ~ 2570MHz / 2620 ~ 2690MHz
Energy gain: 2x22 dBi
50 Ω impedance per connector
Maximum power: 10 W
Viewing angle: horizontal 360˚
Antenna connector: FME female (cable coming out of the antenna)
VSWR: <2.5
Color: white or black (to choose)
Polarization: horizontal, omnidirectional
Dimensions: 21x21x2,5cm
Operating temperature: -40 to 70˚C





The composition of the set:



DUAL OMNI X-CROSS Omnidirectional 2G / 3G / 4G LTE Antenna 2x22dBi
2x 5m SFR200 cable with FMEż plugs
FMEm-SMA connector
Technical support 5 days a week
A receipt or invoice constituting a guarantee 24 month





Huawei modems / routers list compatible with the SMA connector

B880 B890 E5172

List of ZTE modems / routers compatible with the SMA connector
MF25D MF28G MF29T

High quality, low profile, vandal proof antenna for vehicles and M2M enclosures. Supports all mobile networks bands from 800 to 3800 MHz. IP68 weather protected. Surprisingly powerful on higher frequencies (check pictures). Many mounting possibilities (check pictures). 2 2m output cables. Please also click manufacturer link to see more information.

Compatible with any adapter, extension cable or device with SMA female connector.

Antenna PUCK-1
HIGH PERFORMANCE, SMALL SIZE SISO LTE ANTENNA: 690 MHZ – 3800 MHZ
MAX GAIN: 6 DBI

2G/3G/4G/LTE antenna (5G Ready, includes 3.2GHz to 3.8GHz CBRS Band)
Small & Low-Profile (Ø 100mm x h 36mm)
Waterproof & Dustproof (complies with IP68)
Highly Ruggedised (complies with IK10)
Fire Resistant (certified with ECE-R 118.02)
Easy installation; multi implementation options (as standard)
Spigot Mount
Magnetic Mount
Double Sided Tape Mount
Bracket Mount
UV Stable Enclosure
Wideband – covers wide frequency band
Ground plane independent – performs consistently with and without a ground plane.

Poyntingʼs PUCK-1 antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities and Transportation markets. Due to excellence in engineering and a solid design, this antenna provides exceptional performance for its small size. This Cellular antenna (for 2G/3G/4G) cover the 690MHz to 3800MHz band, which includes the most popular international LTE bands.
Description

Poyntingʼs new PUCK antenna range provides easy installation with the multiple mounting options. This includes as standard:

Spigot Mount – two different lengths included (40mm & 80mm)
Vertical Pole mount (inner & outer mounting for smaller and larger poles)
Horizontal Pole Mount (e.g. marine rails)
Magnetic Mount
Surface Mount (Double Sided Tape)
Wall Mount

Frequency Bands
All 4G frequencies 700-2600MHz, All 4G/5G frequencies 700-3500MHz, 4G/5G 700MHz (most rural areas), 4G 800MHz, Helium 865MHz (EU), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), 4G 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 4G 2100 MHz (urban area), WLAN/WiFi 2.4GHz, 4G 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas), 5G 3.5 GHz.

Frequency range (MHz) 800-3800
Antenna amplification (dB) 6
Antenna position Indoor, Outdoor
Antenna direction Omnidirectional
Wall mount included No

Product description

Antenna GSM 2G/3G/4G to enhance data communication and increase the data transfer speed of the 4G/3G and GSM signal, using a double frequency band. The antenna is supplied with two 2.5-m LMR200 low-loss cables to enable a high-quality reception of the 4G signal with only 1 aerial. It can be mounted in or outdoors, whichever gives the best results.
Features

• Enables the reception of the 4G signal with a single antenna
• Incorporates protected ABS materials for a long lifespan
• Equipped with 2x 2.5-m LMR200 low-loss cable for a high-quality signal
• For indoor and outdoor use for perfect positioning
Package contents

Additional Information
Antenna
2x 2.5 m cable
Mounting materials
Quick start guide
Product specifications Appliance Indoor and Outdoor
Colour White
Material ABS
Connector type SMA-Male
Signal type 4G
3G
GSM
Gain 7 dB
IP rating IP65
Cable length 2.5 m
Frequency range 698 - 2700 MHz
Front-back ratio 20 dB
Horizontal polarisation -45 °
Impedance 50 Ohm
Vertical polarisation 45 °

Antenna Panel GSM AMXW-0660V2H2-6 5G 4XN-TYPE 698-900/1800/2100/2600 (4G), 2700 (5G) 3300-3800/4800-5000Mhz Box.

Product Name

5g 4x4 mimo directional panel antenna long range mobile signal booster antennas for communications
Frequency

698～960MHz/ 1710～2700MHz/ 3300～3800MHz
Polarization

±45°
Gain (dBi)

6~8dBi

SPECIFICATIONS:

- Band: 700-2700MHz

- Gain Level: 2 x 26dBi = 52dB

- Polarization: vertical, horizontal

- Impedance: 50 Ohm

- Weight: 0.9 kg

- Handle for the pole 22-42mm (delivered with antenna)

- Angles:

Vertical 34 degrees

Horizontal 36 degrees
Frequency Bands LTE 700MHz (most rural areas), All GSM/3G/4G/LTE frequencies 700-2600MHz (whole), LTE 800MHz (rural area), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), LTE 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 3G 2100 MHz (urban area), 3G/4G Dual Carrier 2100 MHz (urban area), LTE 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas)
Frequency range (MHz) 700-2700
Antenna amplification (dB) 2 x 26
Antenna position Indoor, Outdoor
Antenna direction Directional
Mast clamp (mm) 22-50
Wall mount included No
Product height (mm) 470
Product width (mm) 250
Product depth (mm) 35
Product weight (g) 900

The OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
High gain omni-directional antenna
Includes band 71 (617 to 698 MHz) and 3.5 GHz 5G bands
Wideband operation makes the antenna future proof
Antenna is purpose built for urban and rural applications
Dust and water-resistant enclosure with IP65 rating

Industry (Application)

Commercial & Industrial Antennas, Farming & Agricultural Antennas, IoT M2M & Smart Meter Antennas, Urban & Rural Cellular Antennas
Technology

Cellular (LTE/2G/3G/4G/CBRS/5G)
Frequency Band

617-698MHz, 698-803MHz, 791-894MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Cellular Freq. Range

617 – 3800 MHz
Gain

9dBi
5G Bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality

Omni-Directional
LTE/4G Bands

B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Wi-Fi Standard

Wi-Fi 3 (802.11g)
Mounting Type

Pole Mount, Wall Mount
Connectors

N-Type
MIMO

SISO
Polarisation

Linear Polarised
Environmental

IP65
Enclosure Name

Adder
Enclosure Size

Large
LTE Ports

1

UBIQUITΥ LiteBeam M5 airMAX CPE Access Point LBE-M5-23, 23dBi, 5GHz

Τεχνικά Χαρακτηριστικά:
Operating Frequency: 5150 - 5875 MHz
Networking Interface: (1) 10/100 Ethernet Port
Antenna Gain: 23 dBi
Max. Power Output: 25 dBm
Max. Power Consumption: 4W
Power Supply: 25V, 0.2A PoE Adapter
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
ESD/EMP Protection: ±24kV Contact / Air
Shock and Vibration: ETSI300-019-1.4
Operating Temperature -40 to 70° C
Operating Humidity: 5 to 95% Non condensing
Dimensions 347 x 260 x 208 mm
Weight: 0.7 kg

Περιεχόμενα συσκευασίας
LiteBeam M5 Antenna Feed
Reflector Antenna
Pole Mount kit
PoE adapter (25V 0.2A)
Quick start guide

Outdoor use strong performance and construction dual Mimo omnidirectional antenna 360 base 6 bands Full band 698-960 / 1710-2700/ 3300-3800/ 4800-5000 application for CDMA/GSM/PCS/3G/WLAN/4G LTE/5G.
Omnidirectional antenna is a non-directional antenna that is best-suited for moving vehicles.

Setup on your cargo vessel, passenger bus, cargo truck, cruise ship, or private yacht to give you high-speed 5G and 4G LTE internet connection - on the road or sea.
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability IP65, IP67
Full day working
Optimized dimension
Low standing wave
Strong anti-interference ability

Support for frequencies 698-960, 1710-1800, 2100-2400, 2600-2700, 3300-3800, 4800-5000 MHz
Compatible with all operators and networks
It boosts 3G and 4G, 5G voice and data
Gain: 2 x 8 dBi ~ 9 dBi (23dbi factory)
Maximum power: 100W
Female connector N TYPE X 2 (Female)
Length: 73 cm
Width: 8 cm
Weight: 2.5 kg
Web clamp (mm) 35-75 The actual gain gain is not 23dbi, but about 8-9dbi is a more realistic measurement and depends on the frequency and signal. Suitable for LTE 700MHz frequencies (most rural areas), All GSM/3G/4G/LTE frequencies 700-2600MHz, LTE 800MHz, 3G 900MHz, GSM 900MHz, 3G 1800MHz, GSM 1800MHz, LTE 1800MHz, 4G+/LTE-A 800+ 1800MHz (only few spots in bigger city areas), 3G 2100 MHz (urban area), 3G/4G Dual Carrier 2100 MHz (urban area), WLAN/WiFi 2.4GHz, LTE 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas), 3300-3800Mhz, 4800-5000mHZ.

Brand
Frequency Bands LTE 700MHz (most rural areas), All GSM/3G/4G/LTE frequencies 700-2600MHz, LTE 800MHz (rural area), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), LTE 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 3G 2100 MHz (urban area), 3G/4G Dual Carrier 2100 MHz (urban area), WLAN/WiFi 2.4GHz, LTE 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas), 5G 3.5 GHz, WLAN/WiFi 5GHz
Frequency range (MHz) 698-960, 1710-2700, 3300-3800, 4800-5000
Antenna amplification (dB) 2 x 4 @ 698-960, 2 x 5 @ 1710-2700, 2 x 6 @ 3300-3800, 2 x 6 @ 4800-5000
Antenna position Indoor, Outdoor
Antenna direction Omnidirectional
Mast clamp (mm) 35-80
Wall mount included No
Product height (mm) 700
Product width (mm) 75
Product depth (mm) 75
Warranty 24 months

Omnidirectional 5-band outdoor antenna
Real life gain is not 23dbi, 8-9dbi is more realistic gain and depends on frequency and signal.
     Support for 800, 900, 1800, 2100 and 2600 MHz frequencies
     Compatible with all operators
     Amplifies voice and data 3G and 4G
     Gain: 2 x 8 dBi ~ 9 dBi
     Max power: 100W
     Female N connector
     Length: 73 cm

Compatible with frequency LTE 700MHz (most rural areas), All GSM/3G/4G/LTE frequencies 700-2600MHz, LTE 800MHz (rural area), 3G 900MHz (rural area), GSM 900MHz (rural area), 3G 1800MHz (urban area), GSM 1800MHz (urban area), LTE 1800MHz (urban area), 4G+/LTE-A 800+1800MHz (only few spots in bigger city areas), 3G 2100 MHz (urban area), 3G/4G Dual Carrier 2100 MHz (urban area), WLAN/WiFi 2.4GHz, LTE 2600 MHz (only few spots in bigger city areas), 4G+/LTE-A 1800+2600MHz (only few spots in bigger city areas)

ORDERING DESIGNATIONS
TYPE
PRODUCT NO.

YA 2100 130001553

Top of page

SPECIFICATIONS
ELECTRICAL

MODEL YA 2100
ANTENNA TYPE 9-element Yagi-antenna
FREQUENCY 1900 – 2200 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Linear

(vertical or horizontal dep. on orientation)

GAIN 10 dBi 8 dBd
FRONT-TO-BACK-RATIO ≥ 15 dB
HALF-POWER BEAMWIDTH Approx. 35° (E-plane)

Approx. 45° (H-plane)

BANDWIDTH 200 MHz
SWR ≤ 1.8 @ 1.9 - 2.2 GHz
MAX. POWER 25 W
MECHANICAL

MATERIALS Antenna: Gold aludine, Aluminium
Fittings: Stainless steel
COLOUR Aludine “gold”
TOTAL LENGTH 570 mm
MAX. ELEMENT HEIGHT 100 mm
WEIGHT 300 g (incl. bolts)
CONNECTORS FME-connector

(cable to be ordered separately)

MOUNTING On 30 – 50 mm dia. mast tube

Vertically polarized, omnidirectional base station and marine antenna.
Approximately 3 dBd gain.
Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to
54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the mast tube.
Large bandwidth with respect to both SWR and gain.
Highly suitable for duplex operation with large spacing between the TX and the RX frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
The CXL 2400-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

ORDERING DESIGNATIONS
TYPE NO.
FREQUENCY

CXL 2000-6LW/l 1900 – 2050 MHz
CXL 2000-6LW/m 2000 – 2150 MHz
CXL 2000-6LW/h 2100 – 2200 MHz

SPECIFICATIONS
ELECTRICAL

MODEL CXL 2000-6LW/...
ANTENNA TYPE Coaxial, colinear antenna, broadbanded
FREQUENCY Models within 1900 – 2200 MHz
IMPEDANCE Nom. 50 Ω
POLARISATION Vertical
GAIN 8 dBi 6 dBd
BAND WIDTH ≥ 150 MHz @ SWR ≤ 2.0
SWR ≤ 2.0, typ. ≤ 1.5
MAX. POWER 100 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL

TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE Approx. 0.033 m²
WIND LOAD Approx. 42 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane coated glass fibre
Mounting bracket: Seawater resistant aluminium, epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT Approx. 1.2 m
DIA. IN TOP END 21 mm
DIA. IN BOTTOM END 23 mm
WEIGHT Approx. 800 g
MOUNTING On 16 to 54 mm dia. mast tube

DESCRIPTION

Vertically polarized, omnidirectional base station antenna and marine.
Approximately 6 dBd gain.
Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to
54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the mast tube.
Large bandwidth with respect to both SWR and gain.
Highly suitable for duplex operation with large spacing between the TX and the RX frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
The CXL 2400-6LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station antenna and marine.

Details

Multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G) and WIFI frequencies e.g. for near cost vessels or land based phone and WIFI communication.
Ideal for IOT and M2M applications.

High quality UHF antenna for professional use
Compact and light weight design
Multiband: LTE 800/1800/2600 MHz, GSM 850/900/1800/1900 MHz, UMTS 900/2100 MHz and WIFI 2.4 GHz

WeBBoat 4G PLUS is the first, unique and award-winning 4G/3G/Wi-Fi DUAL SIMintegrated system to surf the Internet, ensuring stable and high speed connections up to, approximately, 20 miles from the coast. weBBoat 4G PLUS is equipped with 2 4G Diversity antennas that receive the Internet signal and creates a personal and safe WiFi network inside the fibreglass boat, that can be used simultaneously by 32 different and authorized devices. Moreover, if a known Wi-Fi network is present and available (for example the marina Wi-Fi), weBBoat 4G PLUS will automatically connect to it to limit the internet fees. weBBoat 4G PLUS is a PLUG & PLAY product as 4G GSM module is integrated inside the dome and, for its operation, only needs a 12/30 Vdc power cable and one/two SIM cards for surfing the Internet to avoid unwanted roaming costs; all this makes weBBoat very easy to install. weBBoat 4G PLUS is also easy to use thanks to the new free App Glomex, available for iOS and Android.





WeBBoat 4G PLUS is equipped with:

• DUAL SIM the external slot for TWO Micro-SIM Cards allows you to choose the best internet operator in the area where you are sailing and you can avoid roaming cost

• New free weBBoat Plus App with AUTOMATIC FIRMWARE UPDATE to always have the best performance without any need to contact technicians;

• 4 Diversity High-gain and wide band 4G antennas covering MORE INTERNET BANDS

• New 2 more powerful Wi-Fi antennas - double Wi-Fi range - to receive the external Wi-Fi signal, such as from the marina, restaurant..;

• 1 4G/3G/WiFi built-in faster fuctions router specifically developed for the marine environment to have a personal and safe Wi-Fi network on the boat, that can be used by up to 32 different devices (iPhones, Smartphones, Tablets and PCs);

• Automatic switch from 4G to Wi-Fi to limit 4G fees;

• Automatic switch of the SIM Cards to reduce the roaming cost.

It has two sim slots, supports international operators, greece included, automatically switches to the one that works.

Sectorial panel antennas are available in multiple frequencies, gain and 90-180 degrees. They can be used stand alone or in circular groups to maximize coverage and feature heavy-duty plastic radome for all-weather operation, with mounting systems that adjust to pinpoint direction.

Improved version bands now including 700, 800 and 2600 MHz 4G networks. (700/800/900/1800/2100/2400/2690 MHz).
Omnipolar, especially good for noats and vehicles, or if all directions are required despite of a fixed location.

Antenna specification:
Model: Omni Omni 2G / 3G / 4G LTE 16dBi Antenna
Operating band: 791 ~ 821MHz / 832 ~ 862MHz
1710 ~ 1785MHz / 1805 ~ 1880MHz
2500 ~ 2570MHz / 2620 ~ 2690MHz
Energy gain: 16 dBi
Impedance: 50 Ω per connector
Maximum power: 50 W
Viewing angle: horizontal 360˚
Antenna connector: N female
VSWR: <1.8
Color: gray (fiberglass)
Polarization: horizontal, omnidirectional
Dimensions: 75cm high
Operating temperature: -40 to 70˚C
The composition of the set:
1. Omni Omnidirectional 2G / 3G / 4G LTE 16dBi antenna
2. 10m SFR200 cable terminated with FMEż plug
3. FMEm-CRC9 / SMA / TS9 3in1 connector
4. Mounting brackets

Description

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .

Specification

Connector: 1 x SMA plug
Frequency range:
698 - 960 MHz
1710 - 2170 MHz
2300 - 2700 MHz
GSM, UMTS, LTE, Bluetooth, ISM, NB-IoT, LoRa, Z-Wave, WLAN, ZigBee, DECT,
TETRA
Antenna gain:
698 - 960 MHz: 1.7 dBi
1710 - 2170 MHz: 1.7 dBi
2300 - 2700 MHz: 2.0 dBi
VSWR:
698 - 960 MHz: 6.0
1710 - 2170 MHz: 2.5
2300 - 2700 MHz: 2.5
Operating temperature: -40 °C ~ 85 °C
Housing material: polycarbonate
Protection class: IP67
Colour: white
Cable: coaxial
Cable type: ULA100
Cable colour: black
Cable diameter: ca. 2.8 mm
Cable attenuation: 0.98 dB @ 1500 MHz per meter
Smallest bending radius: 14 mm
Cable length incl. connectors: ca. 1 m
Dimensions (LxD): ca. 77 x 45 mm


System requirements

Device with a free SMA jack


Package content

Antenna


Package

Retail Box

The frequency range of the antennas covers all GSM, 3G, 4G and LTE frequencies from 698-960MHz, 1710-2100MHz and 2300-2600MHz.

Omnidirectinal antenna GSM AMXF-7060V2H2-6 5G 4XN-TYPE 698-900/1800/2100/2600 (4G), 2700 (5G) 3300-3800/4800-5000Mhz Box.

Frequency Bands

Multi-Carrier / Multi-Technology Evolution Optimized
Cellular 4G LTE CBRS 5G NR (617-4200MHz)
Verizon 4G 5G (DSS) Bands: B2 B4 B5 B13 B46 B48 B66
T-Mobile 4G 5G Bands: B2 B4 B5 B12 B25 B26 B41 B66 B71 n25 n41 n66 n71
AT&T 4G 5G Bands: B2 B4 B5 B12 B14 B17 B29 B30 B66 n5
5G NR Bands: n77 n78 n79
CBRS LTE Band: B41 B42 B43 B48
WiFi 6: 2.4GHz~6GHz

Features

Multi-Carrier / Multi-Technology Compliant
Heavy-Duty High-Density Fiberglass Housing
Engineered For Demanding Enterprise Level Public Safety, Marine, M2M, and IOT Applications
For Use in ALL Climates & Conditions
Approved / Local Agencies Nationwide
For Use in Fixed / Stationary Applications
TAA Compliant

Antenna Mounting

Bracket Mount Hardware Included
