The GVM H3 3-in-1 Smart Soldering Station is a versatile and high-performance tool designed for a wide range of soldering tasks.
It is a professional station that offers precision, efficiency and reliability for electronics repair, PCB fabrication and other intricate tasks that require detailed soldering.
Key Features:
Powerful Performance: With an 80W full-power transformer, the GVM H3 delivers consistent and precise heat, ensuring consistent temperatures during soldering tasks.
This full power is not a false standard, meaning you can rely on the station to maintain its performance over time.

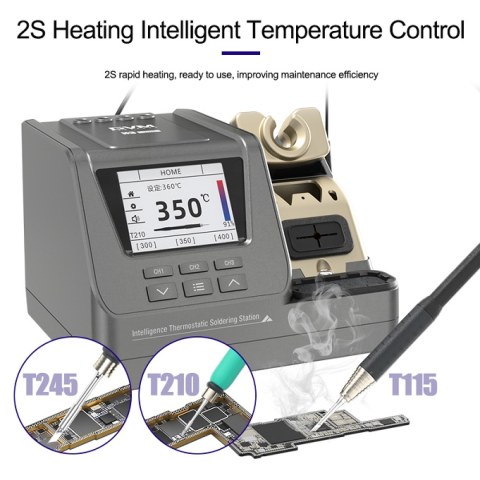

Fast Heat-Up: The station features a 2-second fast heat-up feature, allowing you to start working almost immediately, saving time and increasing productivity.

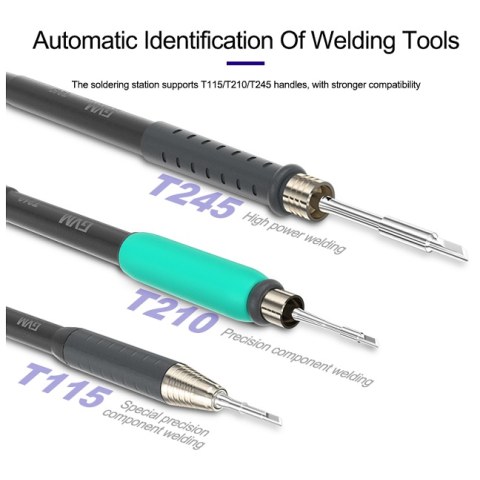

Multi-handle Support: Supports T245, T210 and T115 handles, making it suitable for a variety of applications, including chip-level repairs, mobile phone motherboard desoldering with flying wire, and more.
Intuitive Controls: A digital display and curve display provide real-time temperature monitoring and control, ensuring you can maintain the exact heat required for each task.
Smart Sleep Mode: The smart induction sleep mode puts the soldering iron into sleep mode when placed on the base, extending the life of the soldering iron tip.
Temperature Storage: The station features 3-channel temperature storage for quick switching between frequently used temperature settings, improving workflow efficiency.

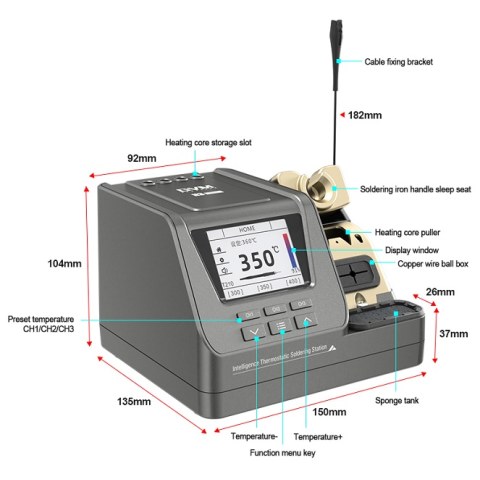

User-friendly design: An adjustable base allows you to change the angle of the handle for comfortable operation, and the integrated socket design includes storage space in the heating core for neat organization.
Easy maintenance: The station has a built-in cleaning ball and copper wire sponge for easy cleaning of the soldering iron tip.
Technical specifications:
Model: GVM H3
Rated operating voltage: AC 110V/220V
Temperature range: 100-480°C (212-900℉)
Temperature stability: ±1°C (±30℉)
Display resolution: 240x320PX (color LCD)
Specification:
Brand: GVM Product Name: 3-in-1 smart soldering station
Model: GVM H3
Net Weight: ≈1650g
Host Size: 150*135*104mm T245
Handle Wire Total Length: ≈1288mm T210
Handle Wire Total Length: ≈126mm T115 handle Wire
Total Length: ≈126mm T245
Heating Core: 100*4.8mm T210
Heating Core: 30*3.5mm T115
Heating Core: 44.5*2.8mm
Package Size: 190*170*165mm
Rated Working Voltage: AC 110V/220V
Rated Power: 80W
Temperature Range: 100-480°C/212-900℉
Temperature Range Accuracy: ±5°C/40℉
Temperature Stability: ±1°C/30℉
Supported Handle Types: 115/210/245
Temperature Adjustment Step: ±5°C/10℉
Delayed Sleep: 0-180s, the delayed sleep function is canceled by default Display
Resolution: 240*320PX (LCD color screen)
System Language: Chinese-English bilingual switching
Working Conditions: 0~40℃, Humidity<80% Storage
Conditions: Temperature-20~80℃, Humidity <80%

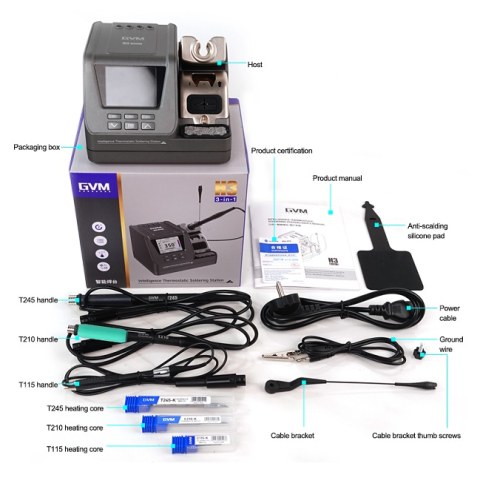

Package includes: 1 x Soldering Station 1 x T245 Soldering Iron Tip(K) 1 x T210 Soldering Iron Tip(K) 1 x T115 Soldering Iron Tip(K) 1 x T245 Handle 1 x T210 Handle 1 x T115 Handle 1 x Cleaning Sponge 1 x Copper Wire Ball 1 x Cable Bracket Hand Screw 1 x Cable Bracket 1 x Anti-scalding Silicone Pad 1 x Ground Wire 1 x Power Cord
