The soldering iron tip cleaner is made out of a metal sponge 85% Bronze and 15% steel. Moistening the sponge is no longer necesssary in order to achieve effective cleaning without having to cool down the soldering gun through moisture. Includes a practical stand with rubber base.

 Technical Data Size 90 x 90 x 45 mm
Material (stand) Aluminium, rubber
Material (Metal sponge) 85% Broze 15 % Steel

The effective multifunctional plate washer agent can be used in ultrasonic cleaning devices, for cleaning electronic products.
The multifunctional electronic plate washer agent can also be directly used for electronic products - cleaning by brush.
After cleaning and drying, the electronic products can be heated.

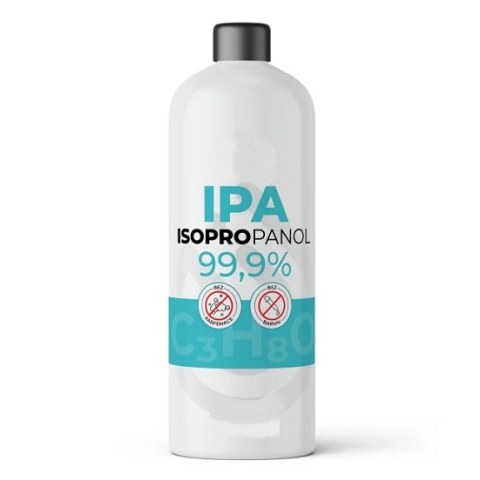

Isopropanol (IPA) is an alcohol that has great cleaning properties. It is a reliable helper when you need to remove grease, glue or other dirt. You can use it on a variety of surfaces without worrying about damaging them.
Product properties removes grease very well has excellent cleaning properties suitable for cleaning electronics
purity 99.9%
Volume: 1L
Contains: propan-2-ol
CAS No. 67-63-0
Formula: C3H8O

Ultra Strong Transparent Double-Sided Tape

Brand: 3M Color: Transparent Size: 5mm (width) x 55m (length)

Double Sided Tape 3M is a double layer pressure sensitive adhesive tape for bonding a wide variety of substrates including low surface energy materials and smooth surfaces widely used for LCDs, cell phones and computers.

Product features:

Brand: 3M
Color: Transparent
Size: 5mm (width) x 55m (length)

Applications:

Battery Bonding, Battery Door Attachment, Bezel Bonding, Camera Module Assembly, Case Assembly, Cover Lens Bonding, Display Bonding, Electrical Insulation Bonding, Electronic Component Bonding, Logo Bonding, Low Surface Energy Bonding, Memory Card Bonding, Module Bonding to PET Card, Rubber Feet Bonding, Speaker Module Assembly, Touch Panel Bonding, Touchpad Assembly, Touchpad Bracket AssemblyColor: ClearOperating Temperature Range (Celsius): 93 - 149 Degrees CTotal Tape Thickness without Liner: 0.17 mm (6.7 mil)Substrates: Glass, HSE Plastics, LSE Plastics, Metals

Application Techniques:Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure and moderate heat, from 100°F (38°C) to 130°F (54°C), will assist the adhesive in developing intimate contact with the bonding surface. To obtain optimum adhesion, the bonding surfaces must be clean, dry and well unified. Some typical surface cleaning solvents are isopropyl alcohol or heptane.* Ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. However, once properly applied, low temperature holding is generally satisfactory.

Environmental Performance:Humidity Resistance: High humidity has minimal effect on adhesive performance. No significant reduction in bond strength is observed after exposure for seven days at 90°F (32°C) and 90% relative humidity.
UV Resistance: When properly applied, nameplates and decorative trim parts are not adversely affected by exposure to direct sunlight.
Water Resistance: Immersion in water has no appreciable effect on the bond strength. After 100 hours at room temperature, the high bond strength is maintained.
Temperature Cycling Resistance: High bond strength is maintained after cycling four times through: 4 hours at 158°F (70°C) 4 hours at -20°F (-29°C) 4 hours at 73°F (22°C).
Chemical Resistance: When properly applied, nameplate and decorative trim parts will hold securely after exposure to numerous chemicals including oil, mild acids and alkalis.
