YAESU

Headset for Yaesu PY-29 Ear FT10, FT40, FT50, VX-1, VX-10 (1 PIN)

Headset for Yaesu PY-29 model VX7R

Set LCD (OEM) Xiaomi Redmi Note 4 Black 14.9cm MEDIATEK Display + Touch screen digitizer (CHINESE VERSION).
Display Type IPS LCD capacitive touchscreen, 16M colors
Size 5.5 inches (~72.7% screen-to-body ratio)
Resolution 1080 x 1920 pixels (~401 ppi pixel density)
Multitouch Yes - MIUI 8.0

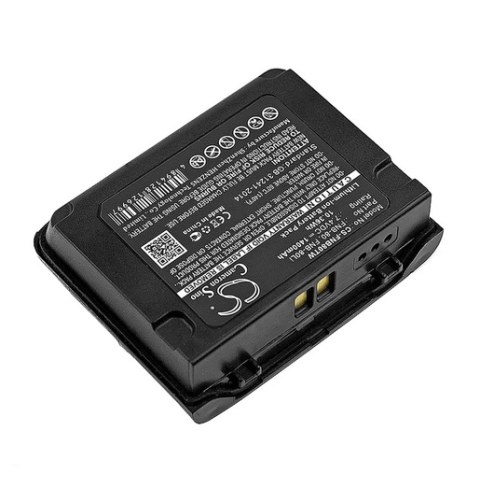

Battery for VHF Yaesu Vertex FNB-80Li Li-Ion 1400 mAh 7.4 V
Compatible with battery Fnb-58, Fnb-58li, Fnb-80, Fnb-80li,
Transeiver model Yaesu VX-5, Vx-5R, VX-6, VX-6R, Vx-7R, Vx-5e, Vx-7e, Vxa-710

O FT-4VE είναι ο νεότερος μικρός και εξαιρετικά συμπαγής φορητός πομποδέκτης της Yaesu που διαθέτει τρία ρυθμιζόμενα επίπεδα ισχύος: 5W (Υψηλή) / 2,5W (Μέση) / 0,5W (Χαμηλή), με ισχυρό ηχείο 1W, ικανό να εξασφαλίσει αξιοζήλευτη ποιότητα ακρόασης. Διαθέτει απίστευτη ευρωστία και ένα ηχείο υψηλής ισχύος ικανό να παρέχει ακριβή και καθαρό ήχο. Η ποιότητα και η σταθερή ισχύς ικανοποιεί και τους πιο απαιτητικούς χρήστες .

Κύρια χαρακτηριστικά:

Μοντέρνα σχεδίαση και πολύ συμπαγές σώμα (52 x 90 x 30 mm).
Παρά το εξαιρετικά μικρό σώμα, διαθέτει μέχρι και 5W ισχύος RF.
Τρία ρυθμιζόμενα επίπεδα ισχύος: 5W (Υψηλή) / 2,5W (Μέση) / 0,5W (Χαμηλή).
1 W ισχυρού ήχου που παρέχεται από το μπροστινό ηχείο 36 mm.
Δύο προγραμματιζόμενα πλήκτρα (πλήκτρα γρήγορης ανάκλησης) επιτρέπουν άμεση πρόσβαση στις λειτουργίες που προτιμά ο χρήστης.
222 συνολικά κανάλια μνήμης.
Τα κανάλια μνήμης μπορούν να αναγνωριστούν εύκολα με αλφαριθμητικούς χαρακτήρες επιλεγόμενους από το χρήστη.
Χάρη στην παρεχόμενη μπαταρία Li-Ion 1750mAh, η συσκευή μπορεί να λειτουργήσει για πάνω από 15 ώρες.
The FT-4VE is Yaesu's newest small and ultra-compact portable transceiver with three adjustable power levels: 5W (High) / 2.5W (Medium) / 0.5W (Low), with a powerful 1W speaker, capable of providing enviable quality of hearing. It has incredible robustness and a high-power speaker capable of delivering accurate, crisp sound. Quality and stable power satisfy even the most demanding users.

Main characteristics:

Modern design and very compact body (52 x 90 x 30 mm).
Despite its extremely small body, it has up to 5W of RF power.
Three adjustable power levels: 5W (High) / 2.5W (Average) / 0.5W (Low).
1W of powerful audio provided by the 36mm front speaker.
Two programmable keys (quick recall keys) allow instant access to user-preferred functions.
222 total memory channels.
Memory channels can be easily identified by user-selected alphanumeric characters.
Thanks to the supplied Li-Ion 1750mAh battery, the device can operate for over 15 hours.
With the SBH-22 Quick Board Charger provided with the transceiver, you can fully charge the battery in just 3.5 hours.
One-touch alarm and quick access to a selected channel allow you to make emergency emergency calls.
Flexible scanning options, including VFO scanning, memory scanning, programmable memory scanning (PMS),
WX Weather Alert Program (only available in NOAA areas).
Operate with VOX using the optional SSM-512B handset.
Customizable and programmable directly from the computer with the optional SCU-35 programming cable.
Cloning between two devices using optional SCU-36 cable.
Built-in FM radio tuner.
Built-in ARTS (Automatic Frequency Difference Selection System for Transponders).
Keyboard DTMF operation.
CTCSS and DCS operation.
BCLO Busy Channel Lock out function.
Power saving function.
Auto power off (APO to reduce battery consumption.
TOT broadcast timer function.

The Yaesu FT-4X is a compact and lightweight device with a robust construction. Without a doubt Yaesu, incorporates this model offering a new equipment with an excellent quality / price ratio. The FT-4XE offers excellent audio quality thanks to its 1 watt speaker.

Another of the great virtues of the Yaesu FT-4X is the lithium battery life . With a total of 1750mAh this battery is capable of operating up to 15 hours. In addition, the fast charger SBH-22 supplied with the equipment will allow us to recharge in approximately 3.5 hours.

Some of the features offered by the Yaesu FT-4X are:

VOX: The VOX function will allow you to speak without pressing the PTT. To use it, you will need the SSM-512 headphone microphone (not included)
Programming via PC (optional cable not included)
Transceiver-to-transceiver cloning (optional cable not included)
Keyboard pleasant to the touch
FM radio receiver
ARTS: Automatic Transponder System
CTCSS / DCS undertones
BLCO: Busy Channel Lock
Auto power off function
TOT: Transmitter time-out timer.

FEATURES:

Communication Distance: 1.5km-3km (include 3km)
Frequency Range:
Transmit: 136-174MHz, 400-480MHz
Receiving 136-174MHz, 400-480MHz
FM radio: 65-108MHz
Transmitting power: 0.5W/2.5W/5W
Number of channels: 200
Battery type: lithium ion battery pack
Battery capacity: 1750mAh
Battery usage: working time is about 15 hours (transmitting: receiving: standby time ratio is 5: 5: 90)
Working current:
Standby: 23mA/95mA (power saving on/off)
Receive: 190mA
Launch: about 1.5A (5W launch)
Modulation type: F2D, F3E, F2A
Frequency stability: ±2.5ppm
Channel step: 5/10/12.5/15/20/25/50/100kHz
Rated voltage: DC 7.4V
Audio rated power: 1W
Working temperature: -20℃ to 60℃
Dustproof and waterproof: IP54
Antenna interface: SMA female

CONTENT:

Dual Band Transceiver
SBR-28LI Lithium Battery
SBH-22 Fast Charge Base
SHB-18 Belt Clip
SRA-15 Antenna
SAD-26C Power Adapter
