HYT Hytera

Battery cover Huawei Honor 10 Lite Blue.
EMPTY NO PARTS

Laser toner (OEM) CE285A for Laser jet HP 1102 Box
Συμβατά μοντέλα:
HP Laserjet P1005/P1006
HP Laserjet P1505/P1505N/M1120/M1120
MFP/M1522/1522F/M1522N/M1522NF/M1550
HP Laserjet P1102/P1102W/PRO M1130/M1212NF
HP LaserJet M1536 MFP/P1560/P1566/P1606
Canon LBP6200D
HP LaserJet Pro P1102/P1102w/1214nfh/M1132/M1212nf
MFP/M1217nfw MFP

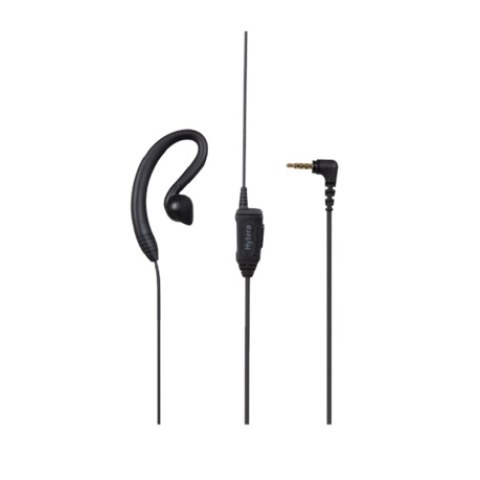

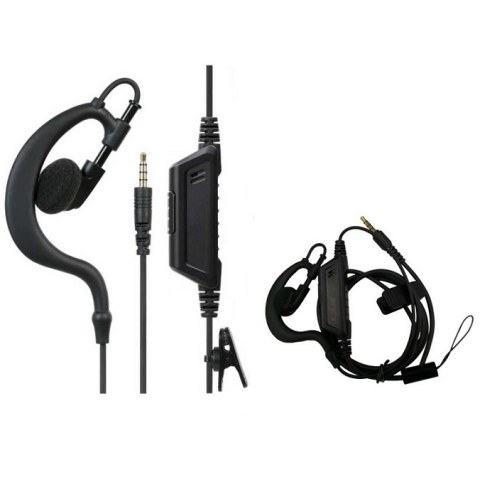

Conventional earpieces allow you to work hands-free, enabling you to enjoy greater convenience and discreet communication

Comfortable to wear with C-style earset
Swivel earbud for easy replacement
Affordability and practicality
PTT-in-line design
Attaching the PTT securely with the plastic clip

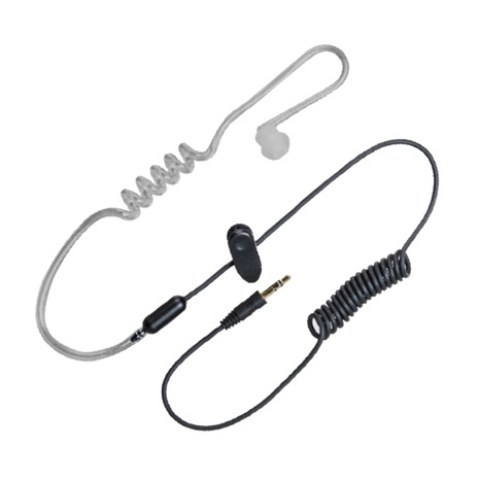

Hytera Earbud with Acoustic Tube (Receive-Only 3.5mm Audio Plug)

Part No. ES-02

For Hytera PTT cables, including ACN-01, ACN-02, ACN-02P, ACM-01 (listed separately).

Waterproof Carrying Case HYT LCYY02 Hytera.
For almost all Hytera portable radios.
The integrated sponge for added protection of your hand radio.
Easy handling with higher reliability
Suitable for use in damp and rainy environments (not for immersion in water).
A nylon strap allows a flexible carry.
Compatible radios all Hytera radios, excluding models in reduced construction
material.
PVC with integrated sponge
size
435 x 110 x 214 (mm)
weight
41.6 g
Operating
0 ~ 50 ° C.

Part from handsfree PTT&MIC controller with 3.5 mm audio socket, without earphone (IP54) -- for BD, PD4 and PD5 series

IP54 compliant base set with PTT button and microphone

can be used with a range of Hytera earbuds such as ES-01, ES-02, EH-01, EH-02 or EHS20
common 3.5 mm jack socket enables earbuds to be connected directly to the ACM-01
unit can be clipped for comfortable wearing


Applicable radios:

DMR: BD505LF, BD505, BD555, BD615, PD405, PD415, PD485, PD505LF, PD505, PD565
Analogue: TC-446S, POWER446, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700

Power cable Hytera DC 3M to be used for devices with less than 25W transmitting power suitable with RD622i, TM600, TM610, etc.

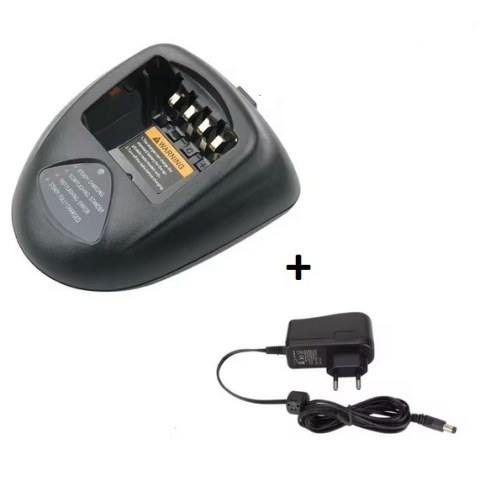

Rapid Charger for the HYT TC-700P and TC-780 (CH10L07).
Technical data
Compatible radios HYT TC-700P/TC-780M
Supported battery types Li-Ion, Ni-MH and Ni-CD
Input voltage 12 VDC, 1A
Charge current 850 mA
Operating temperature 0 ~ 40 °C

The Hytera EH-02 is a Receive Only Swivel Earpiece with a 3.5 mm Audio Jack. The Hytera EH-02 can be used as a receive only earpiece for any brand of two way radio using 3.5 mm audio connections. The Hytera EH-02 can also be paired with the Hytera ACS-01 Quick Connect Headset System. Hytera EH-02 Listen Only Swivel Earpiece can be worn on either ear and are comfortable to wear all day long. The Hytera EH-02 Headset can be worn by multiple users but should be wiped down with an alcohol pad between each user.

The Hytera EH-01 is a Receive Only C Ring Earpiece with a 3.5 mm Audio Jack. The Hytera EH-01 can be used as a receive only earpiece for any brand of two way radio using 3.5 mm audio connections. The Hytera EH-01 can also be paired with the Hytera ACS-01 Quick Connect Headset System. Hytera EH-01 Listen Only Earpiece can be worn on either ear and are comfortable to wear all day long. The Hytera EH-01 Headset can be worn by multiple users but should be wiped down with an alcohol pad between each user.

Battery BL1703 for HYT TC-780 Lion 1700mah.
Manufacturer Hytera
Brand HYT
Color Black
Warranty Hytera - 1 Year
Rating 7.4V
IMPRESS No
Memory Effect No
Requires Maintenance No
Minimum Rated Capacity 1700 mAh
Operational Time (hours) >9.5
Chemistry Li-Ion
Intrinsic Safety Standard No
IP Rating No
Operating Temperature Range -20C to +60C
Recycling Recommended

Original battery HYT TC610 Type BL2001 Lion 2000mah

For almost all Hytera portable radios.
Adjustable straps, convenient to carry.
For users (such as police officers) which in addition to a handheld radio with many more things to.
Compatible with HYT TC700, TC620

Small, light and IP54 compliant remote speaker microphone with 2.5 mm audio jack socket for external earpiece.

Applicable for BD505, BD505LF, BD555, BD615, PD405, PD415, PD485, PD505, PD505LF, PD565
and for TC-700, TC-610, TC-620, POWER446

applicable earpieces: EAS03, EHS17, EHS18

Standard Package includes:
- Nylon Handschlaufe RO04
- Belt clip BC48
- Short description
- Battery 4000 mAh BP4010
- Fixed Antennea Stubby
- Charging cable USB-C
- AP515 analog only radio PMR446

Radio features
- Thin and light
- RF Power Output: 0,5W
- 12.5kHz channel spacing
- IP54 and MIL-STD-810 G to ensure outstanding
- Licence-Free
Categories: Portable Radio
Frequenzy Band: UHF license-free 446 MHz
Functions: Class IP54, no Display, no Keypad
Technologie: License Free PMR446

The Hytera Power446 provides users with hassle free, no monthly fee communications, for businesses and consumers alike. This feature packed, PMR 446 walkie talkie offers you the flexibility of communicating with colleagues, friends or family without the need of a licence. The longer battery life on the Power 446 allows users to communicate for up to 25 hours on a single charge


Dust/Water Protection Class IP66
Ensures protection against dust and strong water jets.

Monitor
Allows users to monitor the activity on the current channel. The feature is especially helpful for receiving a weak signal.

Longer Battery Life
Power245 is equipped with a 2000mAh battery that enables you to transmit and receive, on a 5-5-90 basis, for up to 25 hours.

Enhanced Voice Quality
With a 45mm speaker, Power446 employs advanced voice technologies to better the sound quality during your communication.

Battery Save
The Battery Save feature is automatically activated once no activity on the channel and no operation performed, for extended operation time.

Low Battery Alert
Alert users to recharge the battery should the battery level run low.

TX Admit
Prevent users from “talking over” each other by restricting the user from transmitting if activity is detected on the channel.

Channel Scan
The channel scan feature enables the radio to continuously scan each channel in the scan list for activity. Simply press a side function button to activate scanning. When activity is detected on a channel the scan process will stop and you will hear the transmission.

Time-out Timer
The feature allows for more efficient use of channels by limiting the amount of time of each transmission.

Wired Clone
Easily copy the features of one radio to another.

CTCSS/CDCSS
Set up workgroups/users with unique CDCSS/CTCSS to prevent unwanted conversations on the same frequency.

Selectable Squelch Level (1-9)
Helps minimize interference from undesired weak signals and helps weak signals be heard.

Voice Operated Transmit (VOX)
Enjoy the convenience of hands-free operation when used with optional accessories.

PC Programmable
You are able to customize the features of each radio for each user

Hytera PNC360S Push-to-Talk over Cellular (PoC) radio simplifies the way to communicate with your teammates. This radio can be operated on the widely available public network to deliver instant communications at the push of a button. It is the best choice for those engaged in supermarkets, hotels, logistics, industrial parks, urban and property management, and more.

Specifications
Frequency
GSM: 850/900/1800/1900
CDMA: BC0
WCDMA: B1/B3/B5/B8
TD-SCDMA: B34/B39
LTE TDD: B38/B39/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20/B26/B28
Operating System
Dimensions (H x W x D)
Weight
Non-touch Screen Size
SIM Card
Positioning
External Interface
Battery
Charging Mode
Speaker Power
Operating Temperature
Storage Temperature
Ingress Protection
Drop-proof
Certiöcation
Android 7.0
104mm*54.6mm*26.5mm
About 190g (induding back clip)
1.77 inches
1 Nano-SIM
GPS/BeiDou/Glonass/Galileo/AGPS
USB Type-C port, 3.5 mm audio jack
4,000 mAh, detachable
USB Type-C
2 W (rated), 3 W (max)
-20°C to +60°C
-30°C to +70°C
IP67
1.2m
MIL-STD-810H,CE,FCC
IEC 61000-4-2,(ESD)± 12 kV (Air); ±8 kV (Contact)
Environment Standards
Certification
Specifications
Non-touch Screen Resolution 160 x 128
General
BT
WIFI
BT4.1
2.4GHz, 802.11 b/g/n
European & Asian Areas

Robust and reliable, the Hytera BD505 handheld digital two-way radio offers a simple communication solution, programmable keys and emergency button, ideal for users operating in manufacturing, facilities management or education environments.
RRS allows the BD505 to communicate with Smart Dispatch
and SmartOne, so that the dispatcher can check if the radio is
The BD505 can provide radio enable/disable, remote monitor
and priority interrupt as optional features.
Roam from each repeater site to have a non-stop voice
transmission.
The built-in GPS module and GPS antenna are designed for
outdoor positioning, making it the ideal tool to support
location based requirements.
Built-in Bluetooth supports PD485 wireless audio accessories
and other Bluetooth transmissions.
The BD505 is compliant with Mil-STD-810 G and IP54.
This feature allows you to activate the radio microphone at
speaking volume, so that you do not need to press the PTT.
Compatible with analogue conventional and digital
conventional modes. Allows BD505 to simultaneously monitor
analogue and digital modes and automatically respond in each
mode. Extremely easy migration to digital from analogue.
Ensures the real time is displayed on the menu and GPS/
messaging.
Basic end-to-end Encryption has your voice and data
transmission secured.
Emergency Alarm can be sent to other radios via the one
touch programmable button, establishing an emergency call
This virtual trunking feature allocates a free timeslot for urgent
and allows you to communicate in a timely manner in
emergency situatio

The HYTERA PD505LF radio is a modern radio communication solution, distinguished by its light and small housing, high functionality and parameters of a typical professional radio. The HYTERA PD505LF radio offers the possibility of using it in difficult working conditions, thanks to the IP54 tightness class. This radio does not require any radio licenses in the EU and Greece. That is why it is so willingly used by numerous security companies or companies dealing with concert sound systems. Working in DMR digital mode, I give us great discretion of work and high quality of messages (no interference), compared to the analog system. The Hytera PD505LF radio can also operate in analogue mode, allowing you to migrate your old radios to the new DMR digital system.

The Hytera BP515 supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Itʼs powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. Also, the Hytera BP515 series has extended range in class and features 64 channels, making group communication more flexible.


EXTENDED COMMUNICATION DISTANCE

Brand-new radio frequency scheme and antenna design | Sensitivity up to 0.18 μV | Communication distance increased by 11%
CLEAR AND LOUD AUDIO

Noise cancellation | Loudness up to 90 dB (at 30 cm away, 300 Hz – 3 kHz), increased by 3.4%
IMPROVED USER EXPERIENCE

Flame-retardant polycarbonate plastic | Worm finish | Double-shot injection | Long-life keys | Center-placed antenna and knob from the side view | Independent volume keys | 9-pin accessory connector
FAST CHARGING

Fully charged just in 1.8 hours | 10 hours of talk time on one hour of charging
THINNER AND LIGHTER

BP515: 210g in weight, 29.5mm in depth.
MULTIPLE CHANNELS

64 channels. Assign right people to right channel for right task.


DIGITAL/ANALOG COMPATIBILITY

Allows you to speak to digital radios or analogue radios
PRIORITY INTERRUPT

Allows you to terminate the ongoing call on the current channel to free up the channel, so as to make a new call or a new service.
SCAN

Protects your voice communications against casual listeners | Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice
INTER-CHANNEL INTERFERENCE REDUCTION

Supports 25 K / 20 K / 12.5 K channel spacing
VOX

Allows you to speak without pressing and holding the PTT key, freeing your hands
ENCRYPTION

Enables the radio to encrypt the voice and data with the encryption key to prevent eavesdropping.

UHF digital 64 channels (4x16)
Band UHF 400-470 MHz (programming on demand)
IP54 waterproof and MIL-STD-810G rugged chassis
Powerful 500mW speakers, crystal clear sound
Long battery life 16 hours (1500mAh battery)
VOX function: voice activation
Channel Scan: Scans the frequencies used
Emission low power 1W, high power 4W
Optional Bluetooth and IP67 versions

Hytera BP515 Radio
Li-ion Battery (1500mAh) (BL1507)
Desktop Charging Dock (CH10A07)
UK & EU standard power adapter
Standard UHF or VHF Antenna (AN0160H19 / AN0435H19)
Nylon Strap (RO03)
Belt Clip (BC48)
User Manual

Ideal for high-level professionals who want powerful yet streamlined communication tools, the TC-700 series are packed with cutting-edge technology and HYT innovations. HYT's voice compander audio enhancement and a powerful 1W speaker ensure superb clear, crisp sound, even in noisy environments. Its sleek, ergonomic design makes this TC-700 series radio easy to hold and carry - and it's so lightweight you can take it virtually anywhere.

Wide-band Coverage
Allows users the flexibility to select their frequency for use in their respective work environment.

Powerful Audio Output
HYT's voice compander audio enhancement and a powerful (with a diameter of 40mm) ensure superb clear, crisp sound, even in noisy environments.

Safety Assurance
Safety and security are critical factors for modern organizations. The TC-700's Lone worker, Man Down (optional) and Emergency Siren features are designed to assure your safety in case of emergencies or accidents

Ideal for high-level professionals who want powerful yet streamlined communication tools, the TC-700 series are packed with cutting-edge technology and HYT innovations. HYT's voice compander audio enhancement and a powerful 1W speaker ensure superb clear, crisp sound, even in noisy environments. Its sleek, ergonomic design makes this TC-700 series radio easy to hold and carry - and it's so lightweight you can take it virtually anywhere.

Wide-band Coverage
Allows users the flexibility to select their frequency for use in their respective work environment.

Powerful Audio Output
HYT's voice compander audio enhancement and a powerful (with a diameter of 40mm) ensure superb clear, crisp sound, even in noisy environments.

Safety Assurance
Safety and security are critical factors for modern organizations. The TC-700's Lone worker, Man Down (optional) and Emergency Siren features are designed to assure your safety in case of emergencies or accidents

For improved productivity and efficiency many organisations are adopting Push-To-Talk over 3G/4G/WiFi networks which provides instant communications with large coverage and national or international connectivity.

Specifications
Standards & Frequencies
LTE FDD LTE: B1/3/5/6/7/8
WCDMA B1
WLAN 2.4GHz, 802.11 b/g/n
Bluetooth BT 4.1
Positioning System GPS/BDS/GLONASS
Transceiver
Audio Power Output 1W (Rated) (Max: 2W)
Mic Dual Mic noise suppression
General Specifications
Dimensions (HxWxD) 121 x 55.5 x 24mm
Weight (with battery) 185g (with battery)
Operating System Android 5.1
Processor MSM8909, Quad-core, 1.1GHz
Memory
RAM: 512M
ROM: 4GB
SIM Card Micro SIM (12x15mm)
Display 2.0” 320x240
TFT/Non-touch
Port
Micro USB 2.0
2.5mm Audio Jack
Dock Charger interface
Operating Voltage 3.6V (Rated)
Battery 3100mAh (Li-ion)
Battery Life ≥18h (5-5-90 working Cycle
Environmental
Dust and Water Proof IP55 Standard
Shock & Vibration MIL-STD-810 G Standard
Drop Resistance 1.2m
ESD
IEC 61000-4-2
±8 kV (Contact)
±12kV (Air)
Operating Temperature -20°C ~ +60°C
Storage Temperature -30°C ~ +70°C

Hytera PNC380 POC Radio combines instant communication and multimedia applications into one single device.

Over the 2G, 3G, 4G, and Wi-Fi networks, the device delivers rich multimedia data services, including 4G video transmission, location sharing, and instant messaging.

PNC380 PoC Radio
Instant Communication
Unlimited Possibilities
• PTT services over 2G, 3G, 4G, or WLAN network
• Voice and video calls for higher productivity
and collaboration
• GPS/GLONASS/BDS/AGPS positioning
• IP67 rated to withstand harsh conditions
• Personnel safety enhanced by a dedicated emergency button

General
Configuration Basic Pro
Frequency Asia, Europe, Middle East, and Africa (B8):
GSM: 850/900/1800/1900 | CDMA: BCO | WCDMA: B1/B3/B5/B8
TD-SCDMA: B34/B39
TDD-LTE: B38/B39/B40/B41
FDD-LTE:B1/B3/B5/B7/B8/B18/B19/B20/B26/B27/B28
Screen size 2 inches
Screen resolution 320 x 240
Keypad Full keypad
Dimensions (H x W x D) 145.1mm x 60mm x 26.1mm
Weight 208g (with battery and antenna)
Ingress protection IP67
Drop resistance 1.2m
RAM 512MB 1GB
ROM 4GB 8GB
Extended memory Micro SD/TF card: maximum 32G
Battery 4000 mAh, battery life ≥ 24h (5-5-90 duty cycle), replaceable
Battery operating voltage 3.85V
Charging mode Micro USB 2.0 (5V/1.4 A) Micro USB 2.0 (5V/2A)
Data
WLAN 2.4 GHz and 5 GHz
BT BT 4.1
NFC – Supported
Positioning GPS/GLONASS/BDS/AGPS
Audio, video and image
Camera – 5MP rear camera
Flash – Supported
Video recording – 720 P (1280x720) 30 FPS
Video file format – MPEG-4 (.mp4), 3GPP (.3gp)
Video coding format – VP8, H.264 (BP/MP/HP), MPEG-4
(SP/ASP), H.263 (HEVC), H.265 (MP)
Image file format – JEPG (.jpg), PNG (.png)
Audio file format MPEG (.m4a), 3GpP (.3gp)
Certification
Certification CE/MIL-STD-810 G

Robust and reliable, the Hytera PD485 handheld digital two-way radio offers a simple communication solution with OLED screen, programmable keys and emergency button, ideal for users operating in manufacturing, facilities management or education environments.
RRS allows the PD485 to communicate with Smart Dispatch
and SmartOne, so that the dispatcher can check if the radio is
The PD485 can provide radio enable/disable, remote monitor
and priority interrupt as optional features.
Roam from each repeater site to have a non-stop voice
transmission.
The built-in GPS module and GPS antenna are designed for
outdoor positioning, making it the ideal tool to support
location based requirements.
Built-in Bluetooth supports PD485 wireless audio accessories
and other Bluetooth transmissions.
The PD485 is compliant with Mil-STD-810 G and IP54.
This feature allows you to activate the radio microphone at
speaking volume, so that you do not need to press the PTT.
Compatible with analogue conventional and digital
conventional modes. Allows PD485 to simultaneously monitor
analogue and digital modes and automatically respond in each
mode. Extremely easy migration to digital from analogue.
Ensures the real time is displayed on the menu and GPS/
messaging.
Basic end-to-end Encryption has your voice and data
transmission secured.
Emergency Alarm can be sent to other radios via the one
touch programmable button, establishing an emergency call
This virtual trunking feature allocates a free timeslot for urgent
and allows you to communicate in a timely manner in
emergency situatio

The MD615 it's a Digital Mobile Radio (DMR) Tier-2 and conventional mobile radio that is simple and easy to use, designed for the analog-to-digital migration on PMR applications. The entry-level radio is targeted at taxi, trucks, delivery vans, buses, agricultural vehicles. The radio delivers best-in-class audio and supports analog and digital modes, enabling mixed fleets. The analog and digital auto-detect feature (A&D) recognizes what kind of signal is being received and switches to the correct mode to receive the voice from the speaker. The unit also ensures the same mode is used if there is a reply. The Hytera radio transmits up to 50W in high power version. The product is IP54 rated against dust and water intrusion and is Mil-STD-810G certified for shock and vibration.

MD615 features :

A&D Auto Detect
Compatible with analogue conventional and digital conventional modes. This allows the MD615 to simultaneously monitor analogue and digital modes, automatically responding in each. This presents an easy solution when migrating from analogue to digital.

Double capacity in direct mode
Based on DMR TDMA technology, you can have two voice calls simultaneously in direct mode.

Pseudo trunk
Several talk groups share the same frequency, and each one of them can dynamically choose to use one of the slots to talk. This is a two-slot-trunked mode. While time-slot1 is busy, the MD615 will use time-slot 2 to transmit.

Emergency alarm/call
Use the orange emergency button to initiate an emergency alarm and call to other radios.

Optional features
The MD615 supports radio enable/disable, remote monitor and priority interrupt, external GPS module for upload real-time position in AVL applications.

Hytera XRugged Smart Device PNC460 is built to improve efficiency in the workplace today and tomorrow. It has both smartphone and Push-To-Talk over Cellular (PoC) radio capabilities, empowering your team to connect and collaborate more seamlessly at work. Moreover, the PNC460 is truly rugged to brave any harsh environments. Where there is tough work, there is the PNC460.


Android 12 OS
With the Android 12 OS, the PNC460 delivers the familiar experience and ease of use that the professionals want. More importantly, it provides an open and inclusive platform to run a wide variety of key apps, making everyday tasks easier and faster.


Hytera-developed Toolkit
With versatile ready-to-use Hytera-developed tools such as high beam, noise meter, gradienter, altimeter, plumb, pedometer, and protractor, the PNC460 lets you work efficiently and effortlessly.

As a good assistant, the PNC460 helps you work more efficiently. The stunning 5-inch screen gives you plenty of space to use multiple apps at work. Additionally, this screen is sunlight readable and sensitive enough to react the touch of gloved hands and wet fingers.


Exceptional Durability
The PNC460 is perfect for professionals working in the most demanding environments. It is IP68-rated. The device has tough exteriors and reinforced components to survive dust, water, snow, 1.5-meter sudden drops, extreme temperatures (–20°C to +60°C), and more.


Professional Acoustic System
With the powerful speaker and sophisticated noise cancellation technologies, the PNC460 delivers crystal-clear audio in any noisy environment such as electrical maintenance field, port, and factory. This best-in-class audio promises a high-quality communication experience in any work environments.


Push-to-Talk
With the Hytera HyTalk Pro app, the PNC460 can communicate with PDT, DMR, or TETRA radios over the 2G, 3G, LTE or WLAN network. It delivers instant one-to-one or one-to-group communications anywhere in the world once you press down the tactile and large PTT key. This ensures flow of information at all time, even during the most critical circumstances.


External Antenna
Unlike the radios with the built-in antenna, the PNC460 comes with the external antenna that has a 70% higher RX capability. So even in areas with weak signal strength such as mountains or underground garages, the PNC460 still conveys accurate information without missing any words.


Powerful Camera System
The PNC460 has powerful photography capabilities, thanks to a 50 MP rear camera, HDR technology, and image stabilization algorithm. It can capture clear pictures and stable live videos in the field, and feed them to the command center in real time over the LTE or WLAN network. This is invaluable for dispatchers to know what happened, significantly improving collaboration and outcomes.


Precise Positioning
Thanks to the built-in dual-frequency GPS (L1+L5) chip, the PNC460 provides real-time, precise location for the dispatcher with the accuracy improved to 2 meters. Know where your devices are. Keep your personnel safe.

The HM785 DMR mobile radio is the next generation of professional digital mobile radio providing greater flexibility and scalability. This mobile radio with DMR technology supports a single control head as standard with options for remote control head mounting and dual control head to suit different environments (such as vehicles, motorcycles and fixed control rooms) ensuring efficient communication. The new UI interface facilitates faster operations and the AI-based noise cancellation technology guarantees clearer voice even in the noisiest environments. It is also the first ever DMR radio that can support the IP Transit Solution feature. It comes with a rich digital mobile feature set including a broad range and ability to integrate into existing services, which provides greater efficiency.

Hytera's HM785 Series is a robust and reliable system terminal with a high level of scalability. The device is suitable for use as a vehicular or fixed base and is perfectly integrated in all conventional analogue or digital DMR Tier II systems. Thanks to up-grade software, HM785 can also operate in MPT1327 analog standard Trunking systems (multi-access) or in Hytera XPT (eXtended Pseudo Trunk) digital trunking systems without control channel or in modern more advanced digital Trunking systems with standard control channel DMR Tier III (similar to TETRA).

HM785 Series Hytera - Mobile / fixed transceiver with 2.4 "TFT-LCD display is clearly visible in bright light, has a resolution of 240 × 320 pixels, supports up to 262000 colors and can contain, excluding the status, up to 10 lines, has a selector for volume adjustment or for unlimited channel / group change (360 °), a large and easy to press emergency button, four programmable buttons, start and end call button and, finally, the PTT button.
IP54 protection degree in compliance with MIL 810 C / D / E / F / G standards. Dimensions H x W x D 61.5 x 177 x 179 mm and weight 1520 g.

The HM785 radio includes SD card, for audio recording, while the HM785G radio includes BT5, for programming, audio accessories and indoor location, GNSS, for outdoor location, and SD card, for audio recording.

Features: Hytera HM785

Frequencies: UHF 350-470 MHz / VHF 136-174 MHz
Programmable channels: 1024
Programmable zones: 64
Channels per zone: 256
Channel (analog): 12.5kHz / 20kHz / 25kHz
Working voltage: 13.6V ± 15%
Power Consumption:
Standby less than 0.5A
Reception less than 2 A
Transmission:
1 W less than 3 A
5 W less than 4 A
25 W less than 8 A
Frequency stability: ± 0.5ppm
Antenna impedance: 50Ω
Dimensions: 61.5 x 177 x 179 mm
Weight 1520 g
LCD display 320x240 pixel, 262000 colors, 2.4 ", 8 lines

FEATURES

User-centered Design
The large-size colour display allows good visibility even under extremely strong light. And the seven programmable keys facilitate your communication in various conditions.

Reliable Quality
MD785/785G is strictly compliant with MIL-STD-810 C/D/E/F and IP54 standards, ensuring outstanding performance even under harsh environments.

Superior Voice
With the combined application of narrowband codec and digital error-correction technologies, MD785/785G is capable of ensuring you superior voice under noisy environments or at the edge of the coverage area. In addition, the adoption of the AGC technology also optimises your voice. With a built-in 5W speaker, MD785/785G ensures clear and crisp voice communication.

Higher Spectrum Efficiency, Higher Channel Capacity
Benefiting from the TDMA technology, MD785/785G allows twice the channels based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.

Dual-slot Pseudo Trunk
With this feature, the free slot can be allocated to a member that needs to communicate, effectively enhancing frequency efficiency and allowing you to communicate timely under emergent situations.

Secure Communication
Besides the intrinsic encryption of the digital technology, MD785/785G provides enhanced encryption capability (such as 256-bit encryption algorithm) and the Scrambler feature (selectable).

Versatile Services
In addition to conventional communication services, MD785/785G features rich data services and selectable functions such as Message, Scan, Emergency, Emergency Footswitch, Channel Steering, Auto Registration*, High-speed Data Transmission* and Lone Worker*.

Further Development Port
The reserved port in MD785/785G allows users or any third party to further develop other helpful functions (Message, GPS, Call Control and Telemetry).

Dual Modes (Analogue/Digital)
MD785/785G can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analogue-to-digital transition.

Versatile Voice Calls
Intelligent signalling of MD785/785G supports various voice call types, including Private Call, Group Call and All Call.

GPS
MD785G supports viewing of GPS positioning information and sending of GPS text message.

IP Service*
MD785/785G allows multiple IP functions if connected with a PC via IP address.

Various Analogue Signalling Types
MD785/785G supports various analog signalling types (HDC1200, DTMF*, 2-Tone* and 5-Tone*), providing higher function expansion capacity.

Multiple Languages
MD785/785G supports 10 languages (English, Simplified Chinese, Traditional Chinese, German*, Spanish*, French*, Italian*, Polish*, Russian* and Turkish*), allowing you to select as per your needs.


Key Features

Up To 1024 Channels
GPS
Bluetooth
12.5/20/25 Khz Channel Spacing
Channel Scan and Mixed Mode Scan
IP54
MIL-STD-810 G
Digital Voice Call
Digital Text Message
Lone Worker
Scrambler In Analogue
Basic Encryption and ARC4 DMRA
Enhanced Digital Encryption AES128, AES256 (Optional Licence)
Pseudo Trunking
Multi-Site Roaming
Supports XPT Digital Trunking
Supports DMR Tier III Trunking
IP Connect (Optional Licence)

Package Includes

1 x Hytera HM785G Mobile Radio
1 x Palm Microphone SM16A1
1 x Power Cord PWC10
1 x Mounting Bracket BRK08
1 x GPS Antenna
1 x User Guide

Software Upgradable
With this capability, you can enjoy further features without buying a new machine.

*indicates functions available in later version.

The RD625 is a digital repeater designed specifically to provide reliable radio coverage in buildings and tunnels. The RD625 has been developed in accordance with the Digital Mobile Radio (DMR) open ETSI standard and can be operated with either digital or analog signals.
Hytera's DMR repeater can be connected to an IP-based communication network with multiple sites. The roaming function is used to provide radios in this radio network with voice and data services across cells.
The RD625 repeater provides a connection to existing VoIP telephone systems on the DMR radio network as SIP subscriber. This allows DMR radio subscribers to hold half-duplex conversations with participants from the telephone network. Telephone subscribers have the option of making either individual or group calls in the radio network.
The RD625 repeater provides a connection to existing VoIP telephone systems on the DMR radio network as SIP subscriber. This allows DMR radio subscribers to hold half-duplex conversations with participants from the telephone network. Telephone subscribers have the option of making either individual or group calls in the radio network.
The integrated power supply of the RD625 automatically chooses between alternating current and direct current. This makes it possible to provide a fail-safe radio signal by connecting the repeater to an independent source of direct current (UPS) in addition to the normal supply of power. If the AC supply fails, the RD625 switches to the second power supply automatically.
With air interface encryption signaling and communications data between radios and repeaters are transmitted with reliable protection.
The RD625's well-engineered design makes wall mounting easy using the optionally available wall bracket. This makes it possible to install the repeater flexibly and conveniently in buildings.
The RD625's well-engineered design makes wall mounting easy using the optionally available wall bracket. This makes it possible to install the repeater flexibly and conveniently in buildings.
The RD625's well-engineered design makes wall mounting easy using the optionally available wall bracket. This makes it possible to install the repeater flexibly and conveniently in buildings.
The RD625 combines transmitter and receiver components, the power supply and the duplexer (optional) in its compact chassis.
The RD625 can be monitored, checked and controlled using a PC-based application. The software supports network access from multiple points and allows administrators to monitor the DMR radio network.
To ensure a high level of security, the RD625 features a repeater access monitor that protect the radio network from unauthorized access attempts.

Features:

Wide Compatibility - For Hytera HYT Radio Model: PD502 / PD505 / PD562 / PD565 / PD580 / PD602 / PD605 / PD662 / PD665 / PD685 / PT580H (UL913) / PT580H / PT580H Plus / PD702 / PD705 / PD782 / PD785 / PD755 / PD715Ex / PD795 Ex
Adapts the MCU programmable control method to quickly charge the battery.
Automatically choose the appropriate algorithm to charge different batteries.
Monitor the voltage and temperature of NiMH and Ni-Cd batteries while charging.
Able to control the charging by setting voltage detection, maximum charging time, minimum current, and battery temperature, etc. Providing good protection for charging the battery fully.
Lightweight & Portable.


Specifications:
Type: Charging Base
Brand: For Hytera (HYT)
Model Number: CH10A07
Material : ABS
Input: DC 12V 1A
Recharging Current: 850mAh
Working Temperature: 0 - 40℃
Rechargeable Battery Type: Lithium Ion / Lithium Polymer / NiMH / Nickel Cadmium Battery
Compatible Model:
For Hytera HYT Radio Model: PD502 / PD505 / PD562 / PD565 / PD580 / PD602 / PD605 / PD662 / PD665 / PD685 / PT580H (UL913) / PT580H / PT580H Plus / PD702 / PD705 / PD782 / PD785 / PD755 / PD715Ex / PD795 Ex
For Hytera HYT Battery Model: BL2502 / BL2503 / BL2006 / BL2008 / BL1504
Item Color: Black
Item Weight: 98g
Item Size: Approx. 7.8 * 7.7 * 4.5cm/ 3.07 * 3.03 * 1.77in

Package List:
1 * Charging Base

Note:
Please note that adapter and walkie talkie are not included.
Please allow slight error due to manual measurement.


1) Desktop Charger:

Model: CH10A03

Input: 110V-240V 50/60HZ

Output DC 9.4V==850mA



2) AC Power Supply:

Model: CH10A07

Input: 100-240v 0.5A 50/60Hz

Output: 12v/1A
