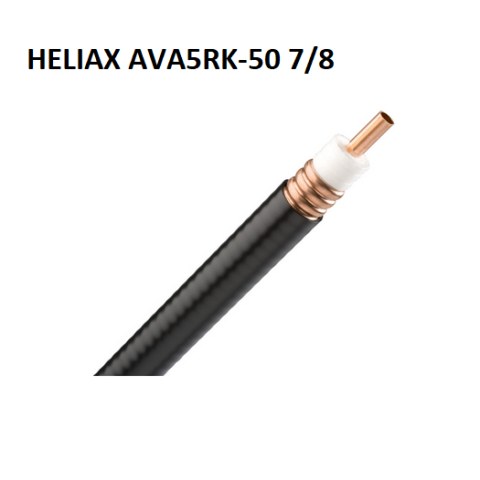

Coaxial cable AVA5RK-50, HELIAX® Andrew Virtual Air™ corrugated copper, 7/8 in, black non-halogenated, fire retardant polyolefin jacket B2ca- s1a, d2,a1 (CPR testing is conducted annually please reference the website for latest classification).
Product Classification Product Type Coaxial wireless cable Product Brand HELIAX®
Product Series AVA5-50
General Specifications Product Number 520097502/00 | SZ520097502/00
Flexibility Standard Jacket Color Black
Performance Note Attenuation values typical, guaranteed within 5%
Specification Sheet Revision Level B
Dimensions Diameter Over Dielectric 24.13 mm | 0.95 in
Diameter Over Jacket 27.94 mm | 1.1 in Inner
Conductor OD 9.449 mm | 0.372 in Outer Conductor OD 25.4 mm | 1 in Nominal
Size 7/8 in Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 73.2 pF/m | 22.311 pF/ft dc
Resistance, Inner Conductor 1.435 ohms/km | 0.437 ohms/kft dc
Resistance, Outer Conductor 1.116 ohms/km | 0.34 ohms/kft dc
Test Voltage 6000 V
