Κεραία σκάφους θαλάσσης CELTriple GSM 5G Marine Antenna white Mini (Network 700/900/1800/2100/2400/3800 ΜΗΖ 100W).
Multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G), 5G and WiFi frequencies for vessel or land based phone and WiFi communication.Ideal for IOT and M2M applications.
- High Quality UHF antenna for professional use
- Compact and light weight design
- Multiband:
- 5G 700/800/900/1500/1800/2100/2600/3500 MHz
- LTE 700/800/1800/1900/2600 MHz
- GSM 850/900/1800/1900 MHz
- UMTS 700/800/900/2100 MHz
- WiFi 2.4 GHz
FREQUENCY 698 - 960 MHz, 1427 - 1518 MHz, 1710 - 2170 MHz, 2300 - 2690 MHz, 3300 - 3800 MHZ
BANDS 5G 700/800/900/1500/1800/2100/2600/3500 MHz LTE 700/800/1800/1900/2600 MHz UMTS 700/800/900/2100 MHzGSM 850/900/1800/1900 MHzWiFi 2.4 GHz
ANTENNA TYPE
End-fed 1/2 λ dipole - no groundplane needed
IMPEDANCE 50 ohm
VSWR < 3.0:1 (698- 960 MHz), < 2.5:1 (1427- 2690 MHz/ 3300 - 3800 MHz)
GAIN 3 dB (Marine), 0 dBd, 2.15 dBi (698-960 MHz)6 dB (Marine), 3 dBd, 5.15 dBi (1427-1518/1710-2170 MHz)10 dB (Marine), 7 dBd, 9.15 dBi (2300-2690/3300-3800 MHz)
RADIATION PATTERN Omni-directional
MAX. INPUT POWER 100 W
MECHANICAL TYPE
COLOR White and chrome
LENGTH 465 mm
WEIGHT 360 g

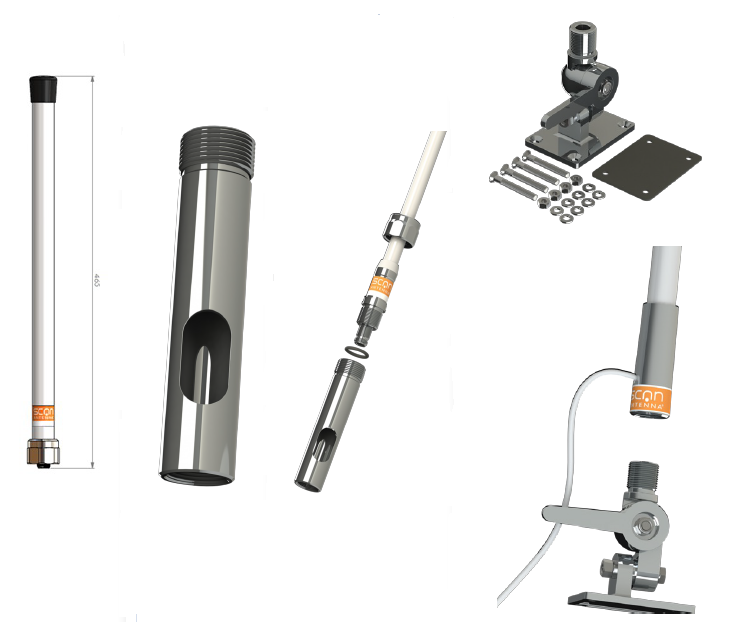

MOUNTING On 1" threaded pole or bracket (G1"-11 thread) with the supplied fixed Revolving Nut
MOUNTING PLACE On mast or deck
MATERIALS UV Protected PC, PTFE, PE and chromed solid brass
SURVIVAL WIND SPEED 55 m/s (125 mph)
OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
CONNECTOR N-female
CABLE No cable supplied
INGRESS PROTECTION IP66
VIBRATION IEC 60068-2-6, IEC 60068-2-64
